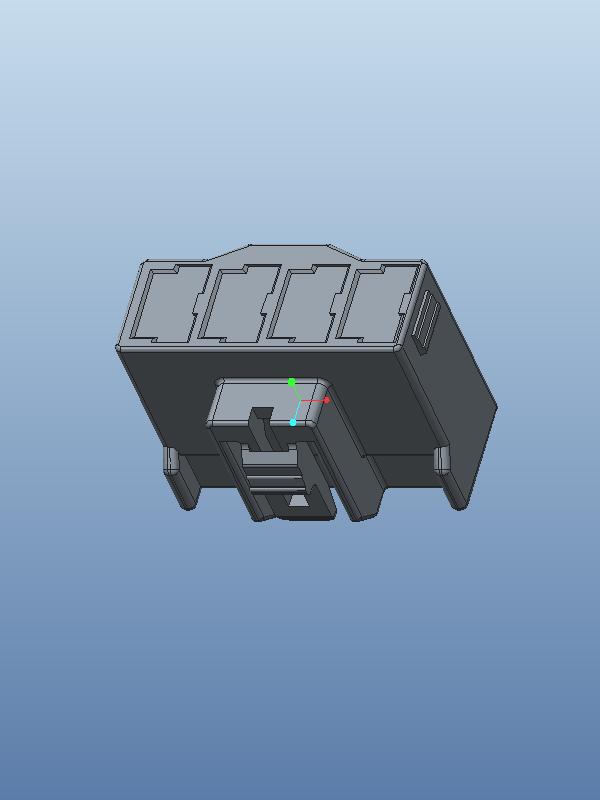

312II 4F CONN'T ASSY

312II 4F CONN'T ASSY

Part Number :: MG651926

Series :: 312 II SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: 312 II SERIES

Dimensions: 38.3*27.8*24.8

Material Type: PBT

Physical Feature

Sealed: NO

Color: Natural

Number of Poles: 4

TPA: YES

Mating Clip: MG631267, MG631268, MG631471

Mating Connector: MG641928

Pitch(mm): 8

Mating Tab Width(in): .312

Electrical Feature

Wire Range: AVS 2.0-3.0,AVS 5.0,AV 8.0

Insulation Resistance: DC 500V 100MΩ MIN

Contact Resistance: 3mΩ MAX (Initial)

Terminal Transmits(A): 42
