Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG652220
- Series :
- 187 SERIES
General Feature
- Series
- 187 SERIES
- Dimensions
- 30.1*22.0*26.7
- Material Type
- PBT
Physical Feature
- Sealed
- NO
- Color
- Natural
- Number of Poles
- 8
- TPA
- YES
- Mating Connector
- MG643430
- Mating Terminal
- ST730644-3, ST730645-3, ST730646-3
- Pitch(mm)
- 6.8
- Mating Tab Width(in)
- .187
Electrical Feature
- Wire Range
- AVSS(CAVS)0.3~0.5,AVSS(CAVS)0.85~1.25,AVS2.0~3.0,AVSS2.0,FLR2X-B4.0
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 10mΩ MAX (Initial)
- Terminal Transmits(A)
- 20

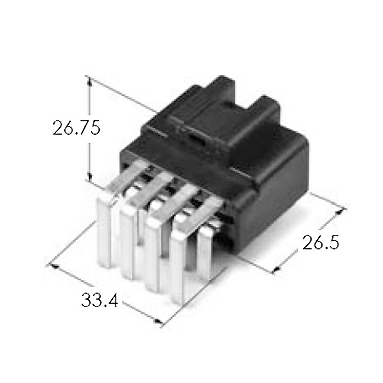

Mating Product
/
