ASCII 16P FEMALE ASS'Y

ASCII 16P FEMALE ASS'Y

Part Number :: MG653198-3

Series :: 090 III (ASC) SERIES

첨부파일

2D PDF

기술 문의 품질 문의 구매 문의

General Feature

Series: 090 III (ASC) SERIES

Dimensions: 34.0*22.0*17.8

Material Type: PBT

Physical Feature

Sealed: NO

Color: Yellow

Number of Poles: 16

Primary Locking Type: HSG Lance

TPA: YES

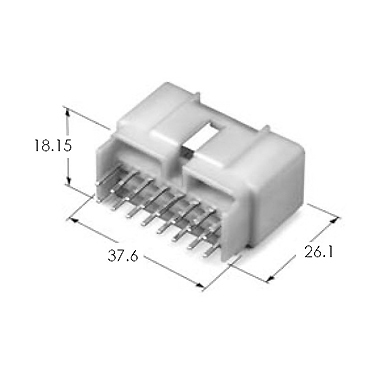

Mating Connector: MG643200

Mating Terminal: ST730775-3, ST730776-3, ST730777-3

Pitch(mm): 4.2

Mating Tab Width(in): .090

Electrical Feature

Wire Range: AVSS0.3~0.5, CIVUS0.35~0.5, AVSS0.85~1.25, AVSS2.0

Insulation Resistance: DC 500V 100MΩ MIN

Contact Resistance: 3mΩ MAX (Initial)

Terminal Transmits(A): 10
