Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG654243-5
- Series :
- 064 SERIES
General Feature
- Series
- 064 SERIES
- Dimensions
- 13.3*23.4*19.5
- Material Type
- PBT+G15
Physical Feature
- Sealed
- NO
- Color
- Black
- Number of Poles
- 8
- TPA
- YES

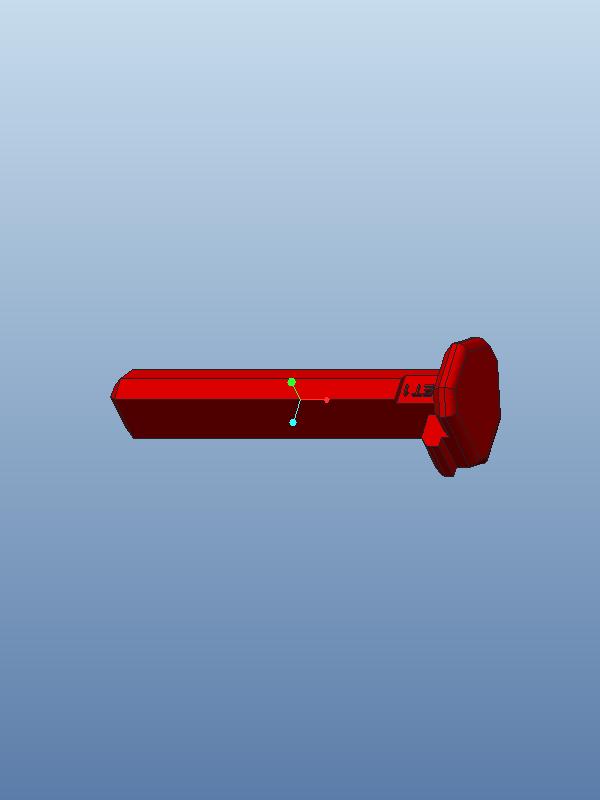

- Mating Rear Holder
- MG635585-1

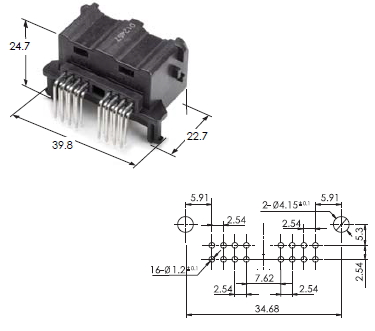

- Mating Connector
- MG645584-5
- Mating Terminal
- ST731068-3
- Pitch(mm)
- 2.54
- Mating Tab Width(in)
- .025
Electrical Feature
- Wire Range
- AVSS0.3~0.5
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 10mΩ MAX (Initial)
- Terminal Transmits(A)
- 5
