Wire To Wire Connector

Automotive Connectors > Wire To Wire Connector

150WP 2F Connector ASSY TypeB(Black)

150WP 2F Connector ASSY TypeB(Black)

Part Number :: MG654467-5

Series :: 060 SERIES

첨부파일

2D PDF

기술 문의 품질 문의 구매 문의

General Feature

Series: 060 SERIES

Dimensions: 23.0*31.2*18.59

Material Type: PA66

Physical Feature

Sealed: YES

Color: Black

Number of Poles: 2

TPA: YES

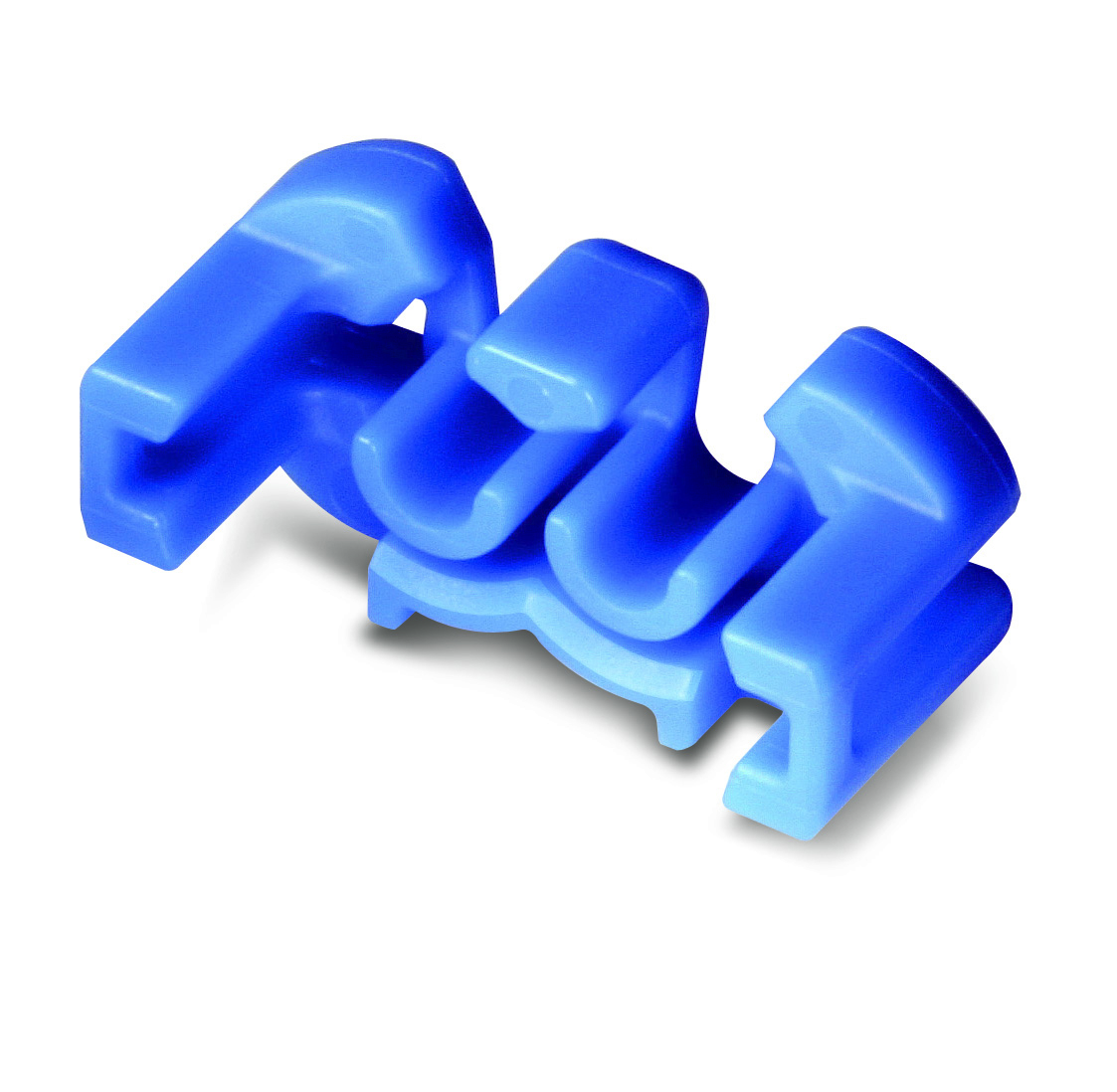

Mating Rear Holder: MG634466-2

Mating Terminal: ST731273-3, ST731274-3, ST731275-3

Pitch(mm): 6

Mating Tab Width(in): .060

Electrical Feature

Wire Range: CHFUS 0.22,AEXF(AVSSXF) 0.3-0.5,AEXF(AVSSXF) 0.85-1.25

Insulation Resistance: DC 500V 100MΩ MIN

Contact Resistance: 5mΩ

Terminal Transmits(A): 10
