Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG655347-41
- Series :
- 060 II SERIES
General Feature
- Series
- 060 II SERIES
- Dimensions
- 23.0*29.8*23.9
- Material Type
- PBT
Physical Feature
- Sealed
- NO
- Color
- Light Gray
- Number of Poles
- 10
- TPA
- YES
- Mating Connector
- MG645488-5, MG645395-5, MG645769-5
- Mating Terminal
- ST730796-3, ST730797-3
- Pitch(mm)
- 3.5
- Mating Tab Width(in)
- .060
Electrical Feature
- Wire Range
- AVSS 0.3-0.5,AVSS 0.85-1.25
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 5mΩ
- Terminal Transmits(A)
- 10

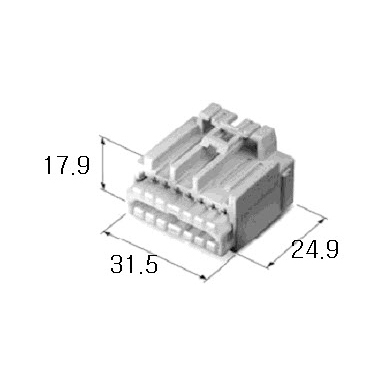

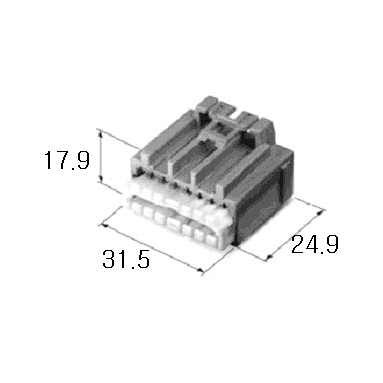

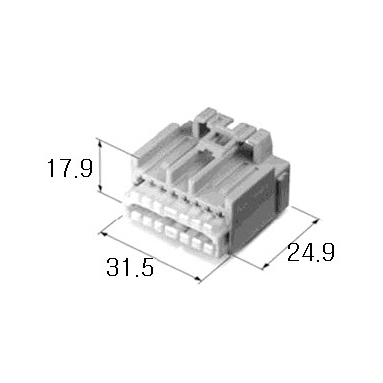

Mating Product
/
