Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG655740-5N
- Series :
- HYBRID SERIES
- Series
- HYBRID SERIES
- Dimensions
- 49.8*33.5*66.0
- Sealed
- YES
- Color
- Black
- Primary Locking Type
- HSG Lance
- TPA
- YES
- Number of Poles
- 7
- Mating Rear Holder
- h635662-41
- Mating Terminal

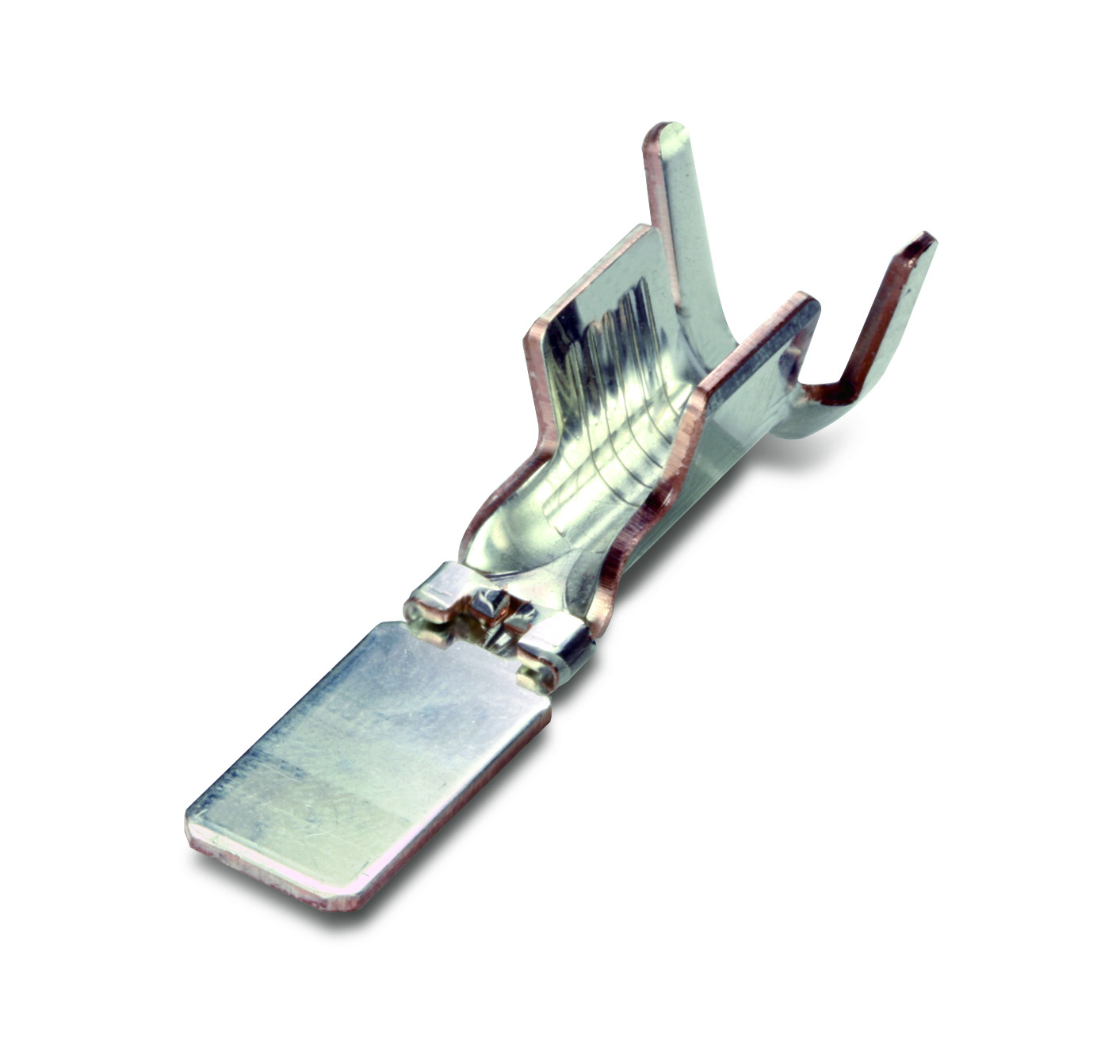

- ST741341-3, ST741342-3, ST740539-3, ST741353-s, ST740539-3
- Mating Connector
- h645785-5
- Wire Range
- 060WP:AEXF 0.3~0.5,AEXF 0.85~1.25,375WP:AVS 5.0~8.0,AEX HSF 10.0~15.0
- Insulation Resistance
- DC 500V 100MΩ Min
- Contact Resistance
- N060WP:5mΩMax,375WP:2mΩMax
-
