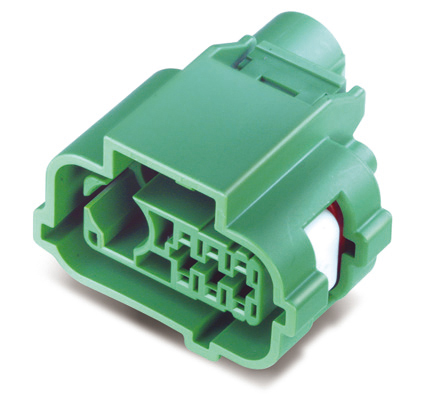

Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG656780-6
- Series :
- 025 SERIES
General Feature
- Series
- 025 SERIES
- Dimensions
- 31.5*22.0*34.0
Physical Feature
- Sealed
- YES
- Color
- Green
- Number of Poles
- 7
- TPA
- YES
- Pitch(mm)
- 3
Electrical Feature
- Wire Range
- AESSXF 0.22, AESSXF 0.3~0.5
- Insulation Resistance
- DC500V 100MΩ MIN
- Contact Resistance
- 10mΩ MAX (Initial)
- Terminal Transmits(A)
- 5
