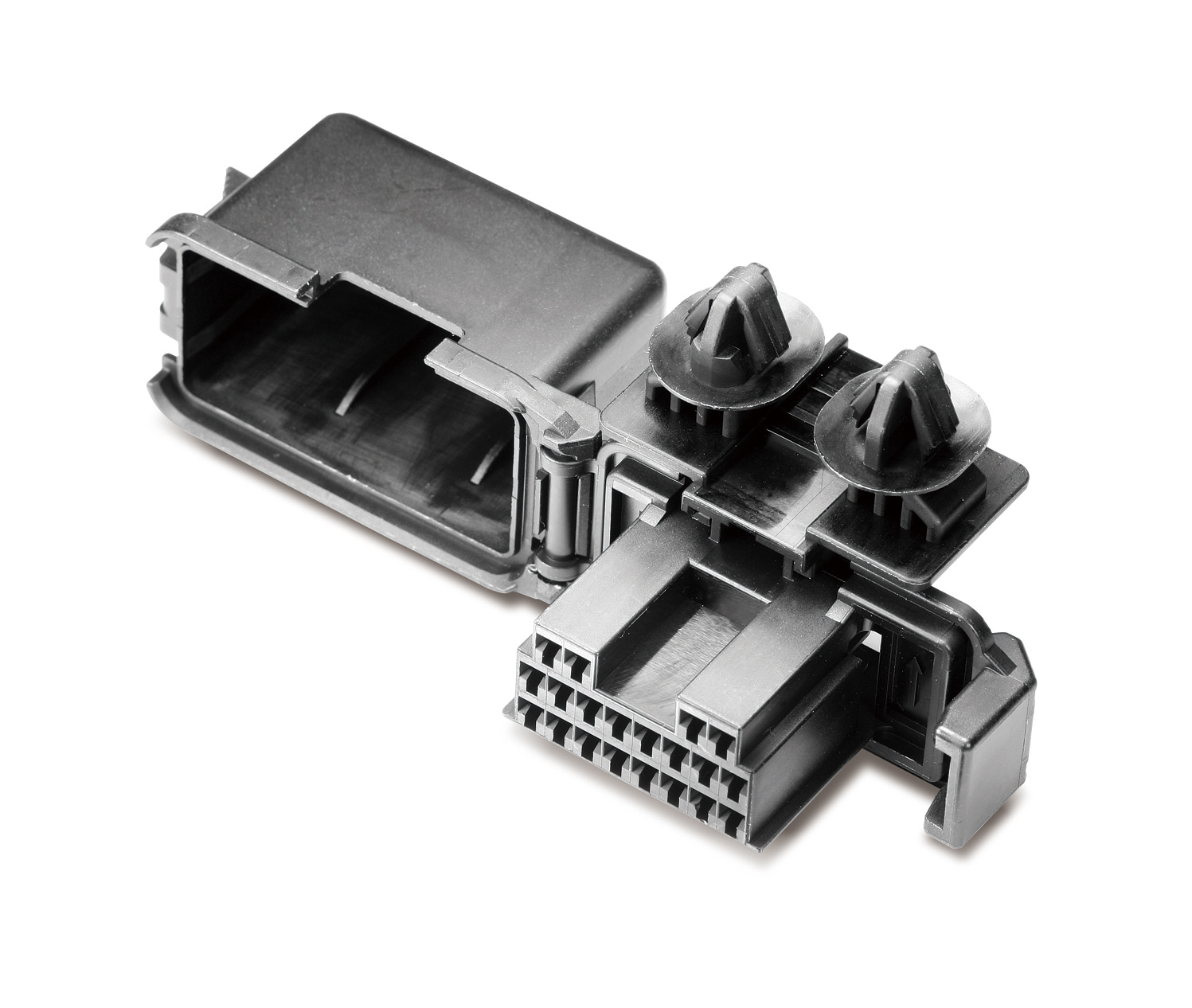

Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG656853-5
- Series :
- DIAGNOSIS SERIES
General Feature
- Series
- DIAGNOSIS SERIES
- Dimensions
- 59.0*50.9*48.2
- Material Type
- PBT
Physical Feature
- Sealed
- NO
- Color
- Black
- Number of Poles
- 20
- TPA
- NO
- Mating Rear Holder
- MG630414-7
- Mating Terminal
- ST730497-3, ST730498-3
- Pitch(mm)
- 3.5
- Mating Tab Width(in)
- .070
Electrical Feature
- Wire Range
- AVS0.85,AVS0.3,0.5, AVS1.25,CAVS1.25, AVSS2.0
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 3mΩ MAX (Initial)
- Terminal Transmits(A)
- 9
