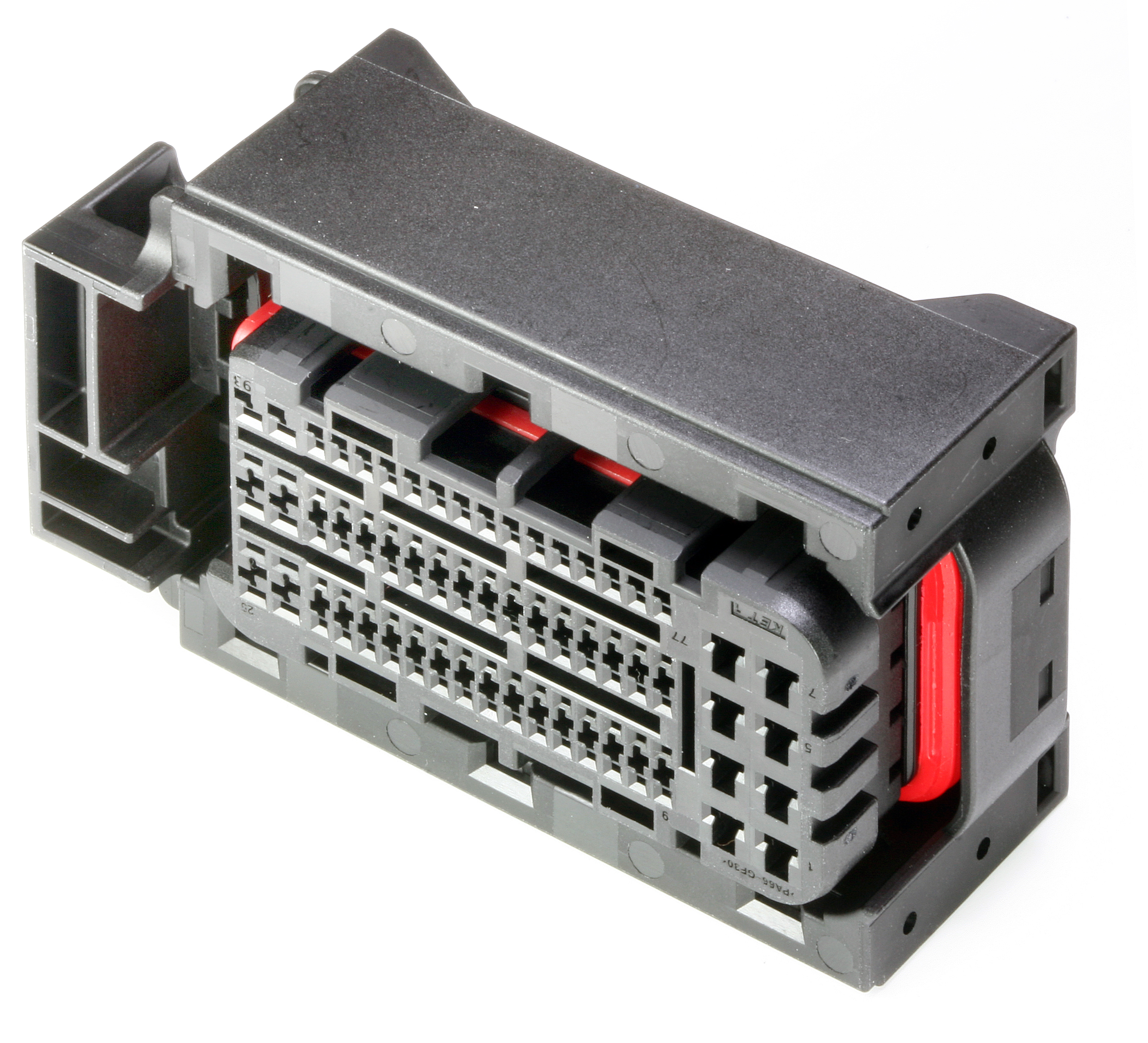

Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG656864-5
- Series :
- ECU/TCU SERIES
General Feature
- Series
- ECU/TCU SERIES
- Dimensions
- 84.0*35.15*50.0
- Material Type
- PA66+G30
Physical Feature
- Sealed
- YES
- Color
- Black
- Number of Poles
- 93
- TPA
- YES
- Mating Rear Holder
- MG630704-7
- Mating Clip
- MG634647-5
- Mating Connector
- MG646015-5
- Mating Terminal
- ST731443-3, ST731444-3, ST731152-3
Electrical Feature
- Wire Range
- 025:AESSXF 0.3~0.5,060:AESSXF 0.75~1.25,110:AESSXF 2.0~2.5
- Insulation Resistance
- DC 500V 100MΩ Min
- Contact Resistance
- 025:10mΩ Max(Initial),060:5mΩ Max(Initial),110:3mΩ Max(Initial)

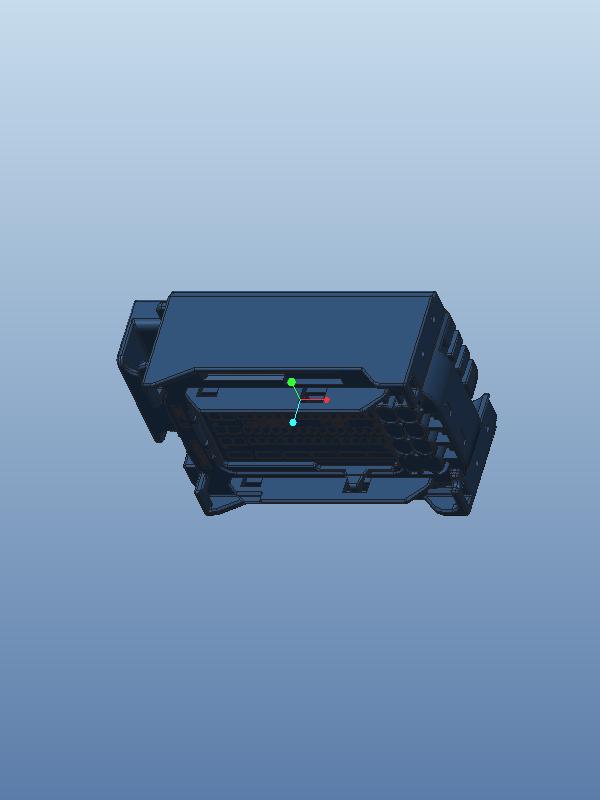

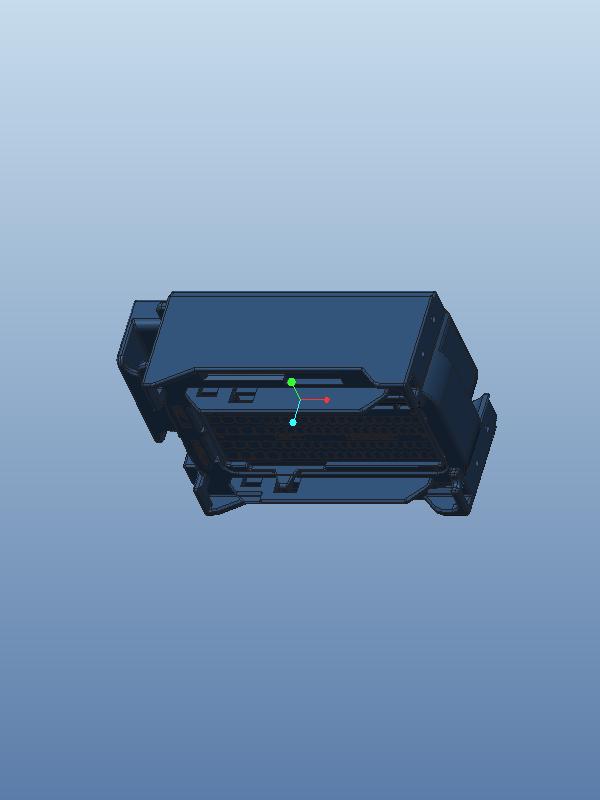

Series Product
/
