Wire To Wire Connector

  • Automotive Connectors > Wire To Wire Connector
025110 8F ASSY_A TYPE
025110 8F ASSY_A TYPE
Part Number :
MG656895-5
Series :
HYBRID SERIES
첨부파일
General Feature
Series
HYBRID SERIES
Dimensions
25.6*19.8*23
Material Type
PBT
Physical Feature
Sealed
NO
Color
Black
Number of Poles
8
TPA
YES

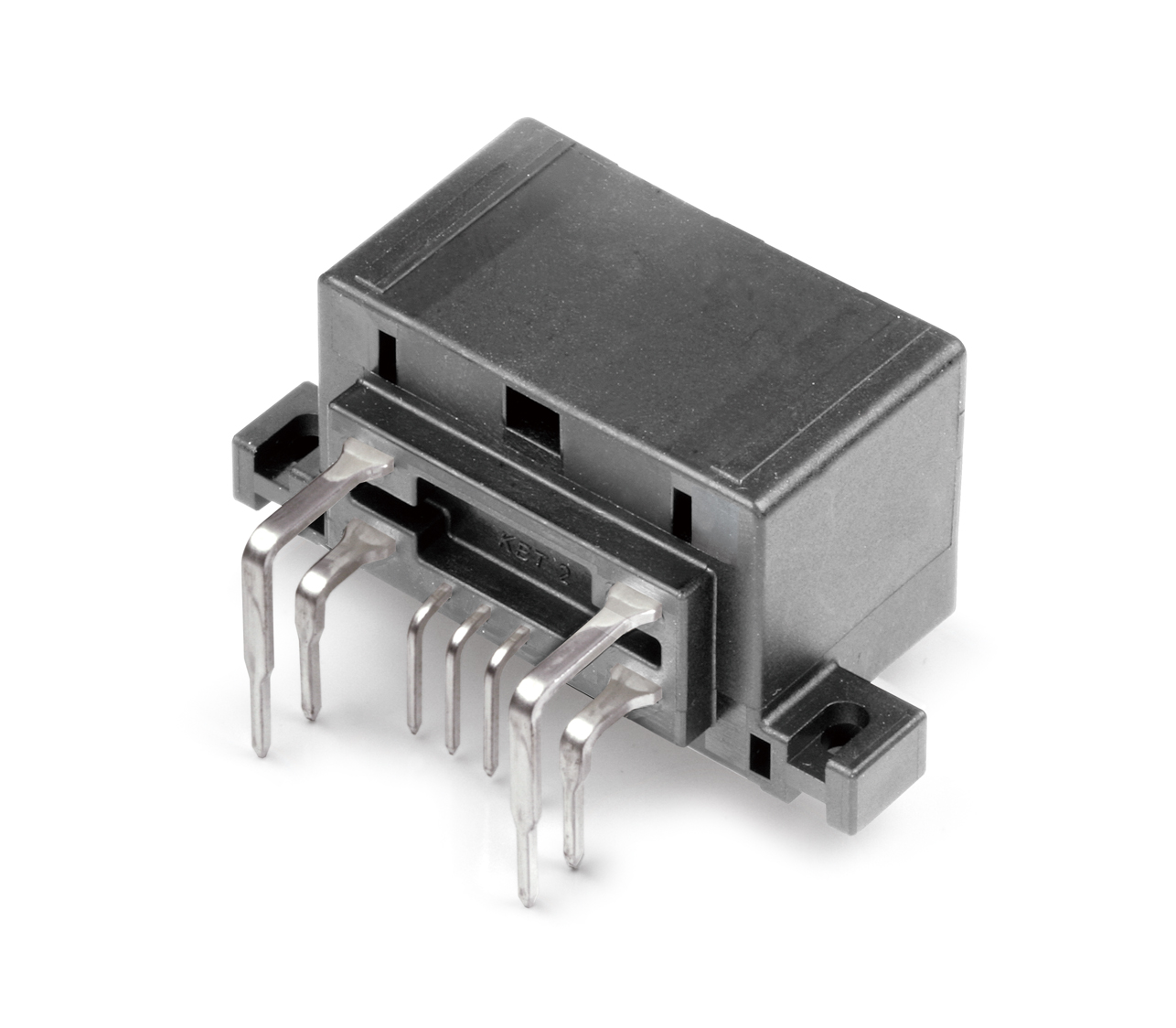

Mating Connector
MG646057-5
Electrical Feature
Wire Range
025: CHFUS 0.22, AVSS 0.3~0.5, 110:AVSS1.25, AESSXF1.25, FLRYA1.5, AVSS2.0, AESSXF2.0,FLRY-A2.0, AESSXF2.5, FLRY-A2.5, AVSS0.85×0.85, AVSS0.5, FLRY-A0.5, AESSXF0.75, FLRY-A0.75, AVSS0.85, FLRY-A1.0, CHFUS0.22, AESSXF0.22,AVSS0.3, AESSXF0.3, CIVUS0.35, FLRY-A0.35
Insulation Resistance
DC500V / 100MΩ (MIN.)
Contact Resistance
025:10mΩ MAX. (Initial), 110:3mΩ MAX. (Initial)
Series Product
/
Mating Product
/
