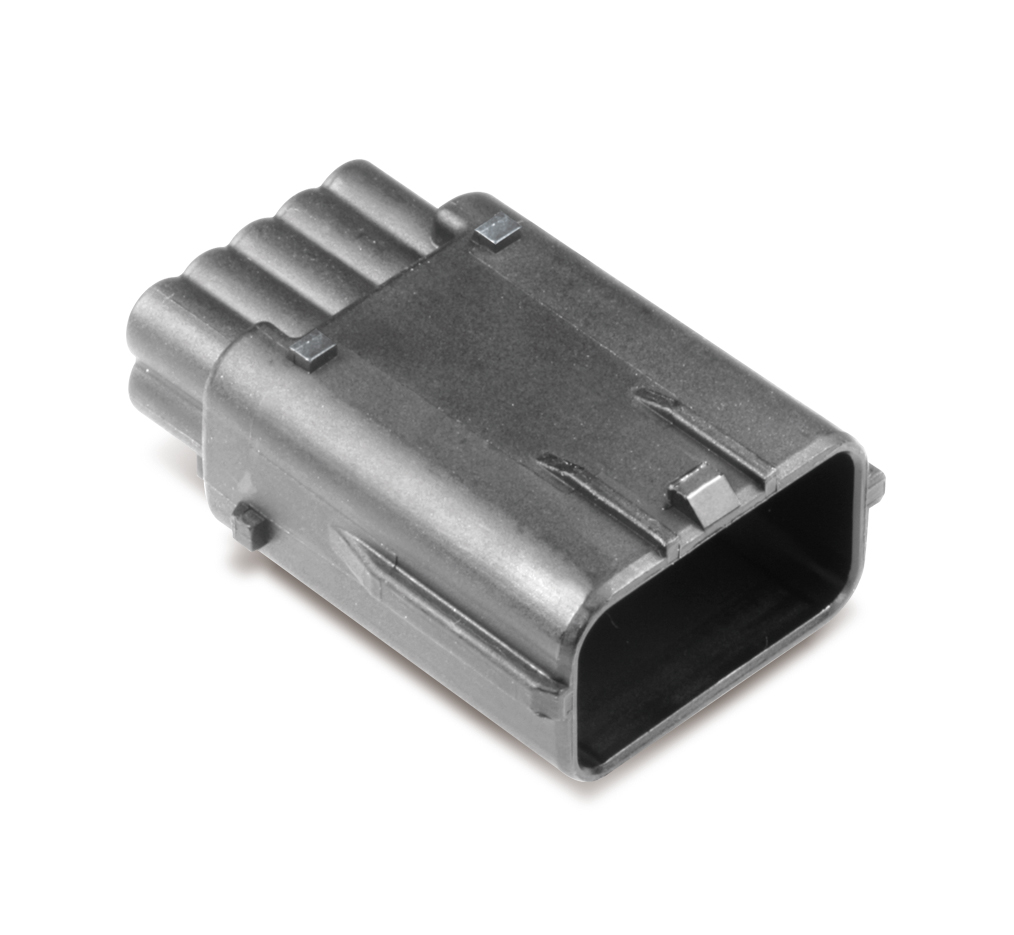

Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector

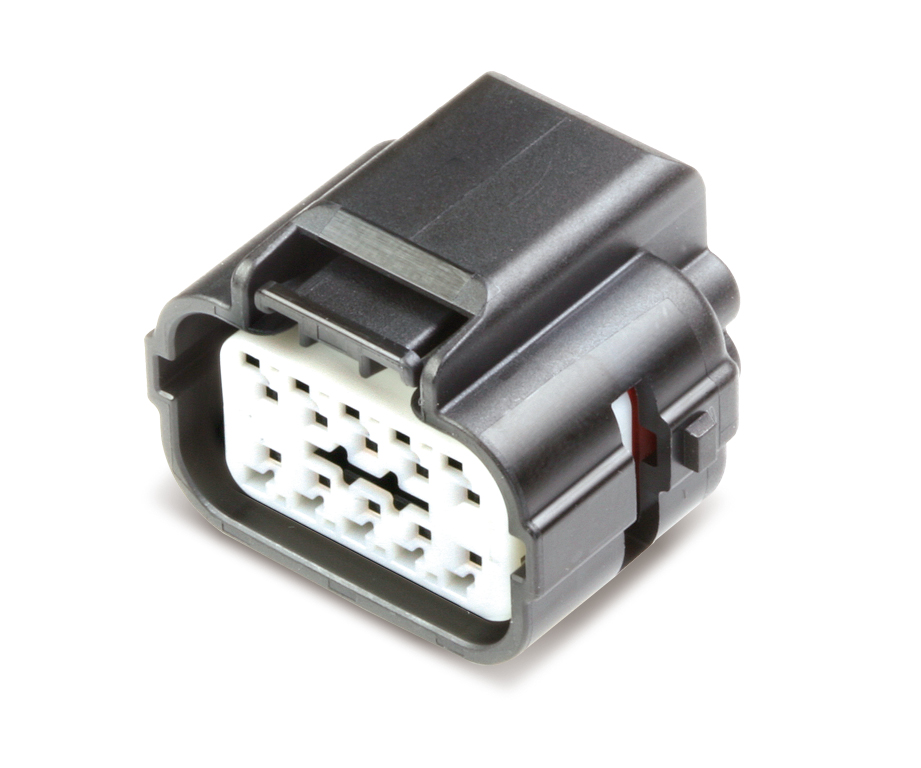

- Part Number :
- MG656900-5
- Series :
- C025 SERIES
General Feature
- Series
- C025 SERIES
- Dimensions
- 28.9*22.75*21.3
- Material Type
- PBT
Physical Feature
- Sealed
- YES
- Color
- Black
- Number of Poles
- 10
- TPA
- YES
- Mating Terminal
- ST731441-3, ST731442-3
- Pitch(mm)
- 3.4
- Mating Tab Width(in)
- .025
Electrical Feature
- Wire Range
- AESSXF 0.3 ~ 0.5 CIVUS 0.35,AESSXF 0.22
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 10mΩ MAX (Initial)
- Terminal Transmits(A)
- 5
