025060110 FAKRA_FRONT_DOOR_45F ASSY

025060110 FAKRA_FRONT_DOOR_45F ASSY

Part Number :: MG656918-5

Series :: DOOR CONN'T SERIES

첨부파일

2D PDF

기술 문의 품질 문의 구매 문의

General Feature

Series: DOOR CONN'T SERIES

Dimensions: 83.7*42.6*36.2

Material Type: PBT

Physical Feature

Sealed: NO

Color: Black

Number of Poles: 45

TPA: YES

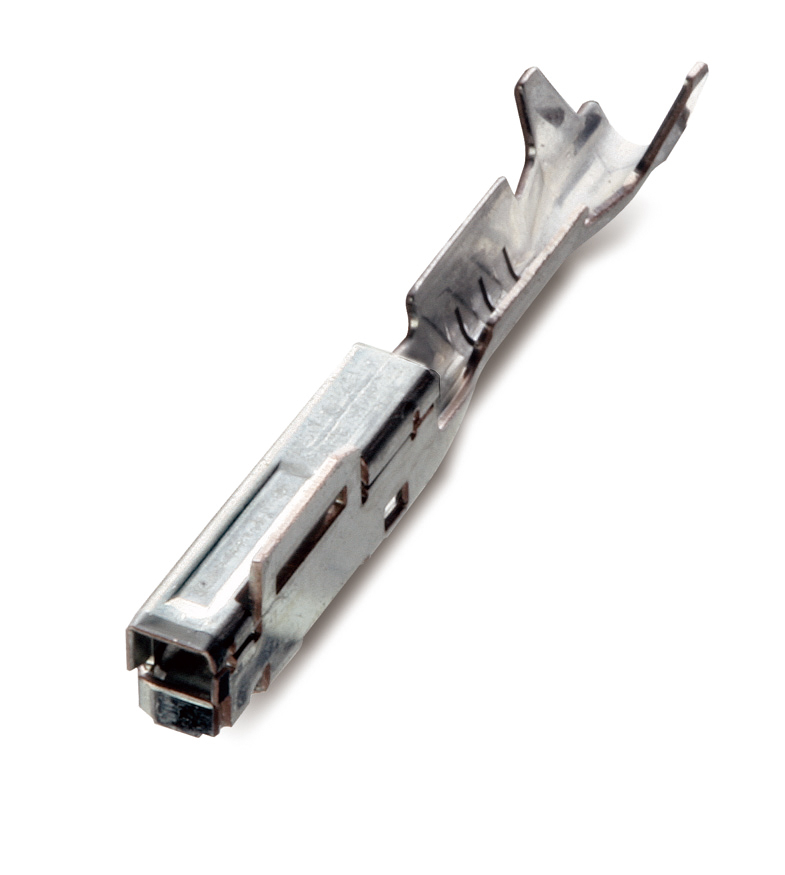

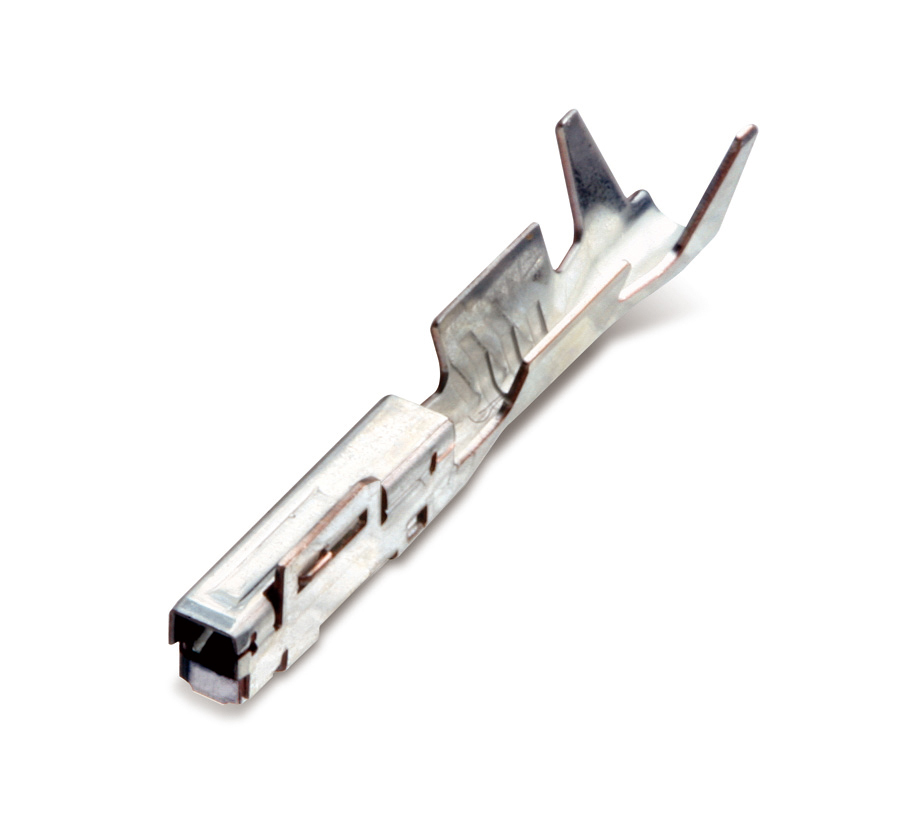

Mating Terminal: ST731410-3, ST731409-3, ST731411-3, ST731412-3, ST731413-3, ST731426-3, ST731425-3, ST731424-3

Electrical Feature

Wire Range: C025:CHFUS 0.22,AVSS 0.3~0.5,C060:AVSS 0.85, 1.25, 0.3+0.3,AVSS 0.3, 0.5,CHFUS 0.22;N110:CHFUS0.22, AESSXF0.22, AVSS0.3, AESSXF0.3, CIVUS0.35, FLRY-A0.35,AVSS0.5, FLRY-A0.5, AESSXF0.75, FLRY-A0.75, AVSS0.85, FLRY-A1.0,AVSS1.25, AESSXF1.25, FLRYA1.5, AVSS2.0, AESSXF2.0, FLRY-A2.0, AESSXF2.5, FLRY-A2.5, AVSS0.85×0.85

Insulation Resistance: 025:DC 500V 100MΩ Min,060:DC 500V 100MΩ Min,110:DC 500V 100MΩ Min

Contact Resistance: C025:10mΩ Max(Initial),C060:5mΩ Max(Initial),N110:3mΩ Max(Initial)
