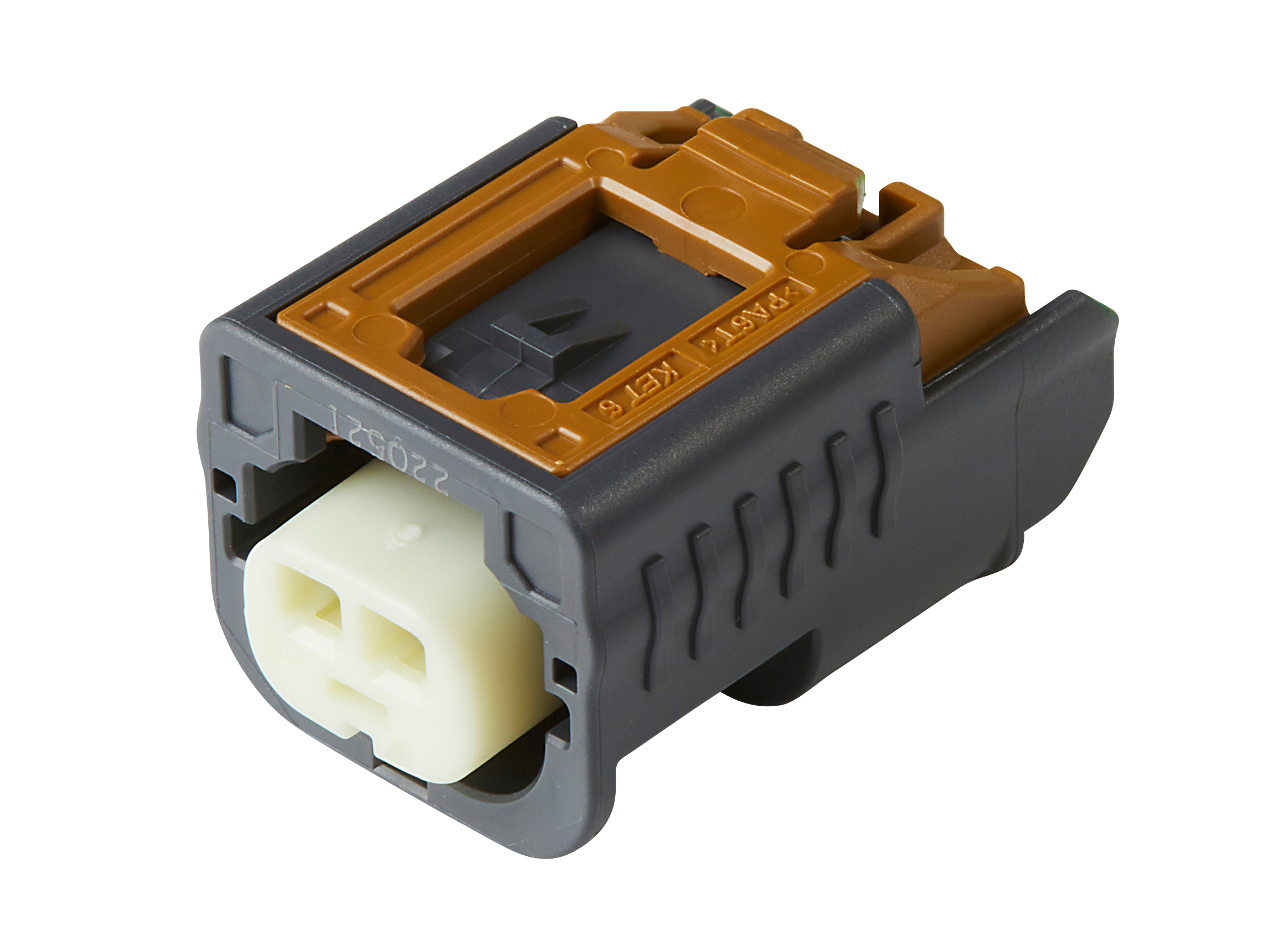

KN AIRBAG WP 2F ASSY-CODE5

KN AIRBAG WP 2F ASSY-CODE5

Part Number :: MG656946-4

Series :: SSD SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: SSD SERIES

Dimensions: 21.4*18.2*32.3

Material Type: HPA

Physical Feature

Sealed: YES

Color: Gray

Number of Poles: 2

TPA: YES

Mating Terminal: ST731488-g

Pitch(mm): 4.2

Mating Tab Width(in): .050

Electrical Feature

Wire Range: 050:AESSXF 0.3~0.5

Insulation Resistance: DC500V / 100MΩ (MIN.)

Contact Resistance: 5mΩ MAX. (Initial)

Terminal Transmits(A): 5

Series Product

/

Mating Product

/

KN AIR BAG WP FEMALE TERMINAL
