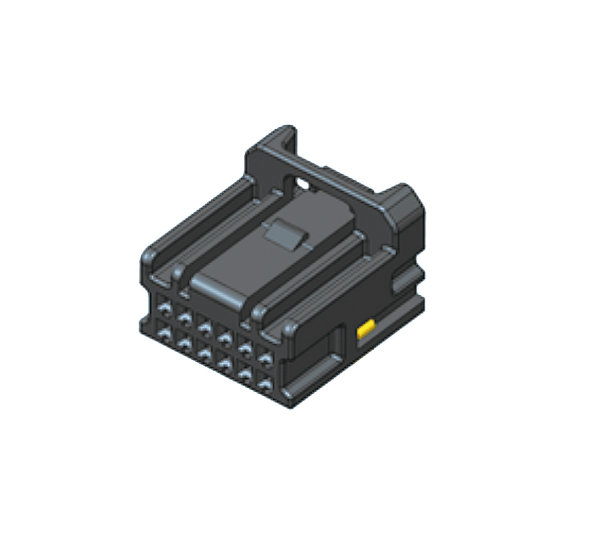

020 12F ASSY

020 12F ASSY

Part Number :: MG656971-5

Series :: 020 SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: 020 SERIES

Dimensions: 15.3*12.6*16.4

Material Type: PBT+G10

Physical Feature

Sealed: NO

Color: Black

Number of Poles: 12

TPA: YES

Mating Connector: MG646151-5

Mating Terminal: ST731462-3

Pitch(mm): 2

Mating Tab Width(in): .020

Electrical Feature

Wire Range: 020:AESSXF 0.3, CIVUS 0.35

Insulation Resistance: DC500V / 100MΩ (MIN.)

Contact Resistance: 10mΩ MAX. (Initial)

Terminal Transmits(A): 3
