Wire To Wire Connector

  • Automotive Connectors > Wire To Wire Connector
025060110250312375 71F ASSY
025060110250312375 71F ASSY
Part Number :
MG657058-2
Series :
HYBRID SERIES
첨부파일
General Feature
Series
HYBRID SERIES
Dimensions
70.1*33.0*32.8
Material Type
PBT
Physical Feature
Sealed
No
Color
Blue
Number of Poles
71
Primary Locking Type
HSG Lance
TPA
YES
Mating Rear Holder
MG630660
Mating Connector
MG646276-2
Mating Terminal

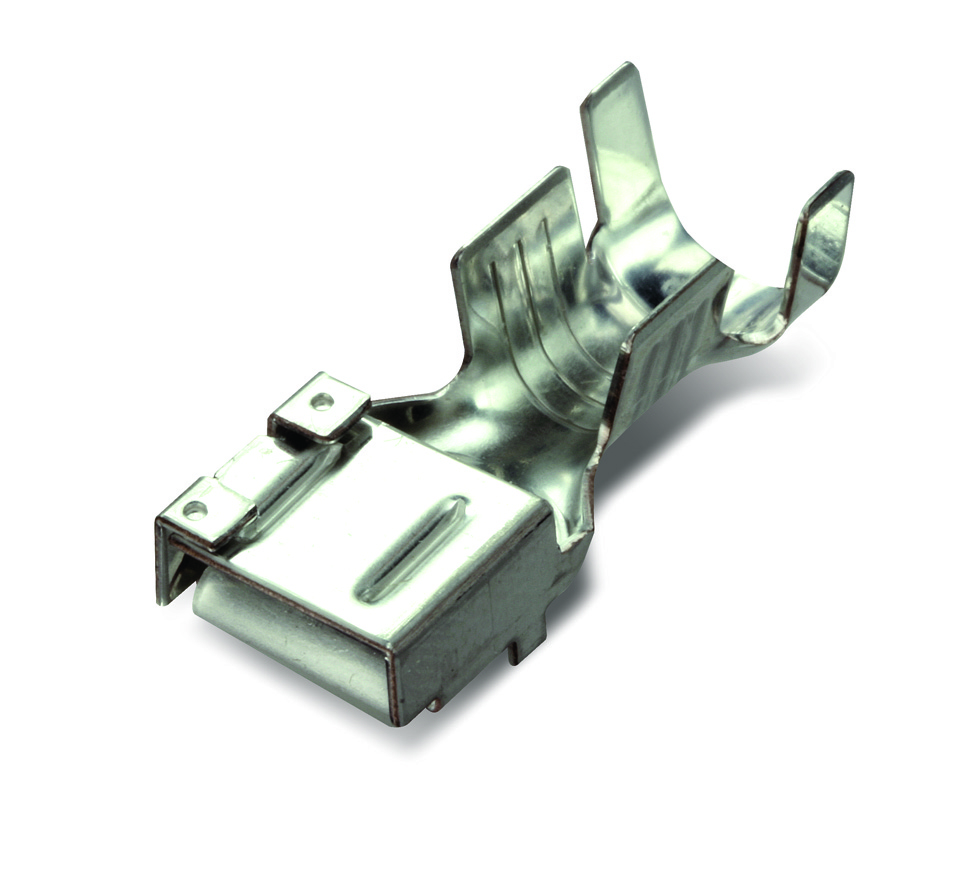

ST731409-3, ST731410-3, ST731411-3, ST731412-3, ST731413-3, ST731424-3, ST731425-3, ST731426-3, ST731428-3, ST731429-3, ST731430-3, ST730642-3, ST730643-3, ST731112-3, ST730722-3, ST730723-3
Pitch(mm)
025:2.2*3.4,060:3.2*3.5,110:5.6,250:9.2,312:12.55
Mating Tab Width(in)
.025 / .060 / .110 / .250 / .312 / .375
Electrical Feature
Wire Range
AVSS 0.3~0.5,CHFUS 0.22,AVSS 0.3,0.5,0.85,1.25,CHFUS 0.22,AVSS 1.25,AESSXF1.25,FLRY-A1.5,AVSS2.0,AESSXF2.0,FLRY-A2.0,AESSXF2.5,FLRY-A2.5,AVSS0.85X0.85,AVSS0.5,FLRY-A0.5,AESSXF0.75,FLRY-A0.75,AVSS0.85,FLRY-A1.0,CHFUS0.22,AESSXF0.22,AVSS0.3,AESSXF0.3,CIVUS0.35,FLRY-A0.35,AVS3.0,FLRY-B4.0,AVSS1.25,AESSXF1.25,FLRY-B1.5,AVSS2.0,AESSXF2.0,FLRY-B2.0,AESSXF2.5,FLRY-B2.5,AVSS0.5,AESSXF0.5,FLRY-B0.5,AESSXF0.75,FLRY-B0.75,AVSS0.85,FLRY-B1.0,AVS2.0~3.0,AVS5.0,AV8.0,AVS5.0,AVS8.0,AVS3.0
Insulation Resistance
DC 500V 100MΩ
Contact Resistance
025:10,060:5,110:3,250:3,312:3,375:2mΩ MAX(Initial)
Terminal Transmits(A)
5/6/10/25/42/60
