Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :

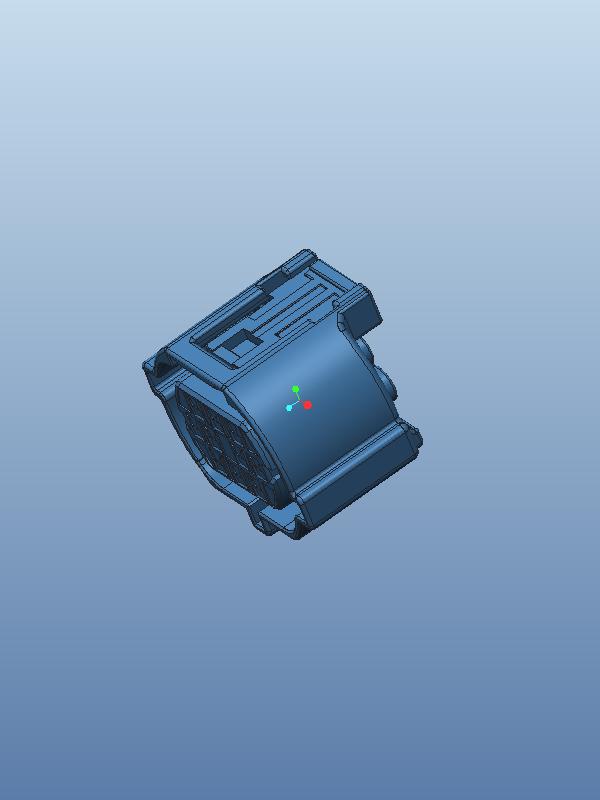

- MG657150-5
- Series :
- C060 SERIES
General Feature
- Series
- C060 SERIES
- Dimensions
- 35.4*24.95*29.45
- Material Type
- PBT
Physical Feature
- Sealed
- YES
- Color
- Black
- Number of Poles
- 10
- Primary Locking Type
- HSG Lance
- TPA
- NO
- Mating Connector

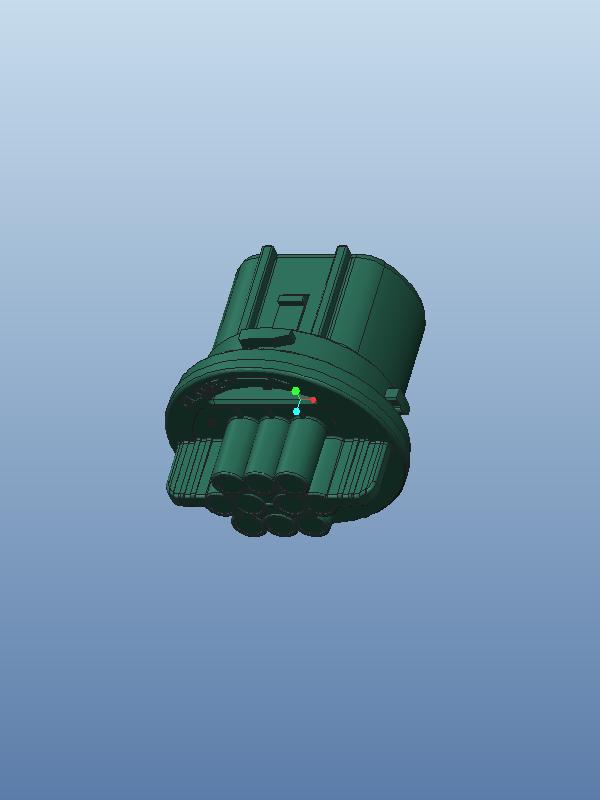

- MG646390-5
- Mating Terminal
- ST731438-3, ST731439-3
- Pitch(mm)
- 4
- Mating Tab Width(in)
- .060
Electrical Feature
- Wire Range
- C060 WP :AESSXF 0.3~0.5,0.85~1.25
- Insulation Resistance
- DC 500V 100MΩ
- Contact Resistance
- 5mΩ
- Terminal Transmits(A)
- 10
