Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :

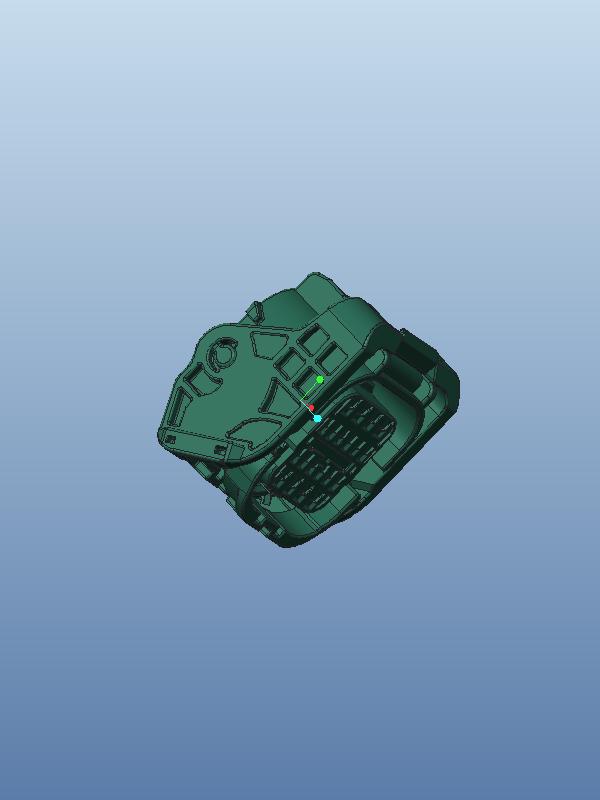

- MG657201-5
- Series :
- LAMP CONNECTOR SERIES
General Feature
- Series
- LAMP CONNECTOR SERIES
- Dimensions
- 43.30*43.95*34.65
- Material Type
- PBT
Physical Feature
- Sealed
- YES
- Color
- Black
- Number of Poles
- 20
- Primary Locking Type
- HSG Lance
- TPA
- YES
- Mating Connector

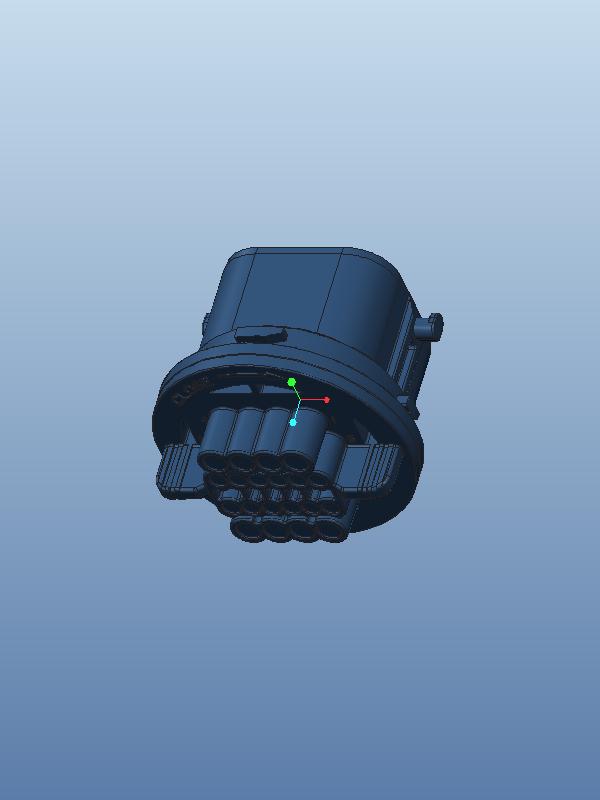

- MG646445-5
- Mating Terminal
- ST731438-3, ST731439-3, ST731441-3
- Pitch(mm)
- 025:3.4*6.95, 060:4.6*17.15
- Mating Tab Width(in)
- .025 / .060
Electrical Feature
- Wire Range
- AESSXF 0.3-0.5, CIVUS 0.35, AESSXF 0.85~1.25, AESSXF 0.3-0.5
- Insulation Resistance
- DC 500V 100MΩ
- Contact Resistance
- 025:10, 060:5 mΩ MAX(Initial)
- Terminal Transmits(A)
- 5/10
