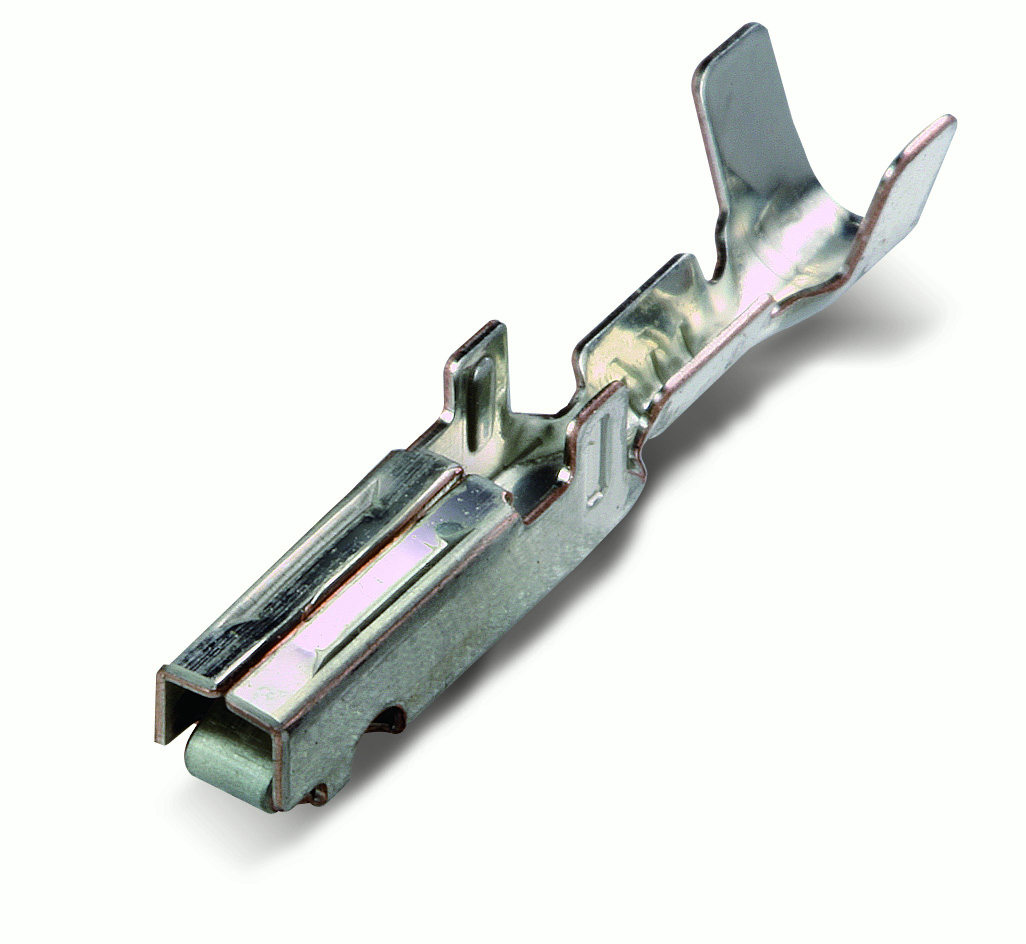

SDL FEMALE TERMINAL(M)

SDL FEMALE TERMINAL(M)

Part Number :: ST730498-3

Series :: SDL SERIES

첨부파일

2D PDF

기술 문의 품질 문의 구매 문의

General Feature

Series: SDL SERIES

Material Type: Copper Alloy

Dimensions: 18.1*2.7*2.8

Physical Feature

Plating: Pre-Tin

Sealed: NO

Tab Thickness(mm): 0

Primary Locking Type: HSG Lance

Mating Tab Width(in): .070

Terminal Type: Straight-Side

Electrical Feature

Wire Range: AVS, CAVS 1.25, AVSS2.0

Insulation Range: 2.1-2.7

Terminal Transmits(A): 5/9

Contact Resistance: 3mΩ MAX
