Automotive
- Automotive Connectors > Terminal > Automotive
- Part Number :
- ST731047-3
- Series :
- 090 SERIES
General Feature
- Series
- 090 SERIES
- Material Type
- Brass

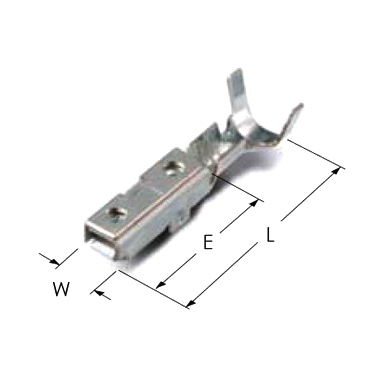

- Dimensions
- 18.0*2.9*2.7
Physical Feature
- Plating
- Pre-Tin
- Sealed
- NO
- Tab Thickness(mm)
- 0
- Primary Locking Type
- HSG Lance
- Mating Tab Width(in)
- .090
- Terminal Type
- Straight-Side
Electrical Feature
- Wire Range
- AVSS,CAVS 0.85~1.25
- Insulation Range
- 1.8~2.2
- Terminal Transmits(A)
- 10
- Contact Resistance
- 3mΩ MAX
