Automotive
- Automotive Connectors > Terminal > Automotive
- Part Number :
- ST731418-G
- Series :
- SWP SERIES
General Feature
- Series
- SWP SERIES
- Material Type
- Phosphor Bronze

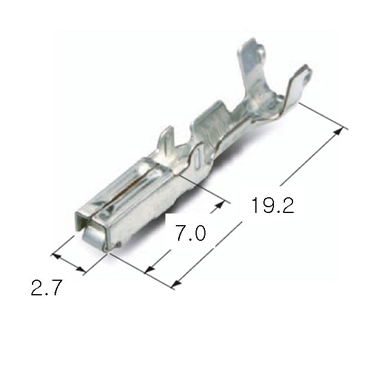

- Dimensions
- 19.40*2.70*3.50
Physical Feature
- Plating
- Au/Ni
- Sealed
- YES
- Tab Thickness(mm)
- 0
- Primary Locking Type
- HSG Lance
- Mating Wire Seal
- MG680448
- Mating Tab Width(in)
- .070
- Terminal Type
- Straight-Side
Electrical Feature
- Wire Range
- AVSS 0.3
- Insulation Range
- 1.4-1.5
- Terminal Transmits(A)
- 9
- Contact Resistance
- 3mΩ MAX
