090III 2F HOUSING
090III 2F HOUSING
Part Number :
MG610850-4
Series :
090 III (ASC) SERIES
첨부파일
General Feature
Series
090 III (ASC) SERIES
Material Type
PBT
Dimensions
12.0*21.0*7.6
Physical Feature
Sealed
NO
Color
Gray
Primary Locking Type
HSG Lance
Number of Poles
2
TPA
NO
Connector Position Assurance
NO
Mating Terminal
ST730365-3, ST730366-3
Pitch(mm)
7
Mating Tab Width(in)
.090
Electrical Feature
Wire Range
AVSS 0.3~0.5,AVSS 0.85~1.25
Insulation Resistance
DC 500V 100MΩ MIN
Contact Resistance
3mΩ MAX
Terminal Transmits(A)
10

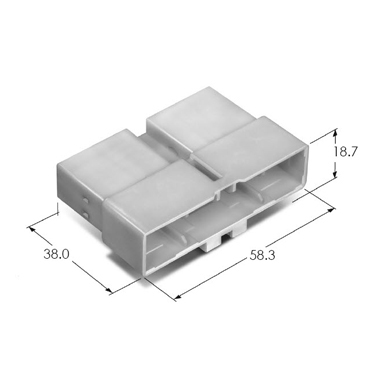

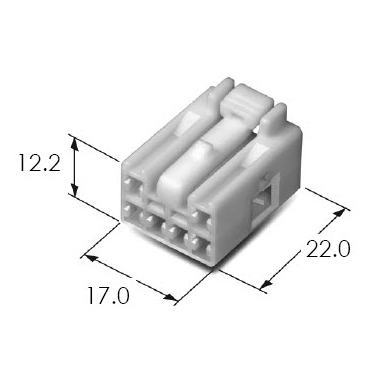

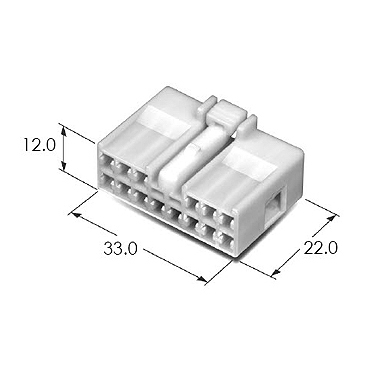

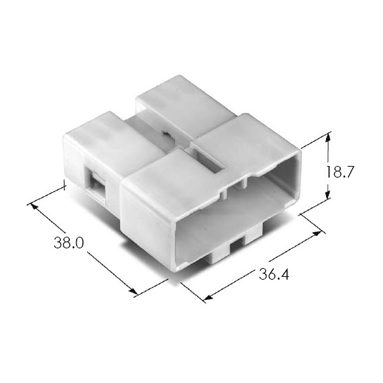

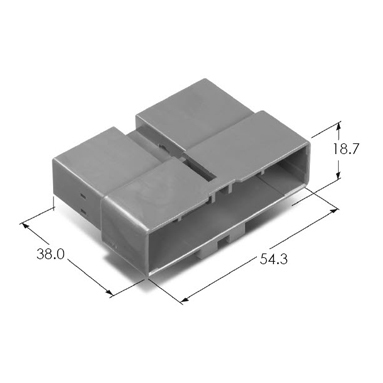

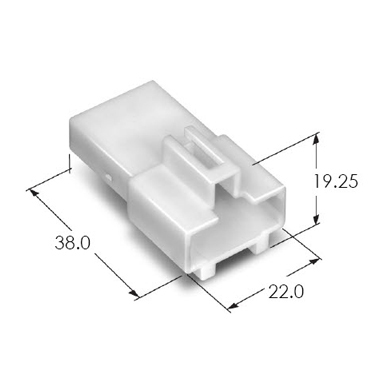

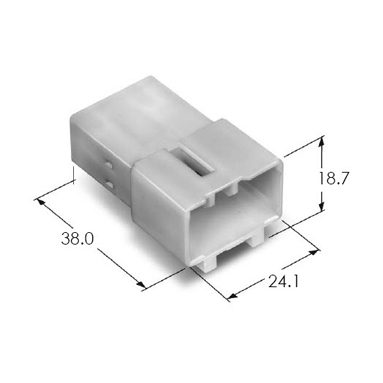

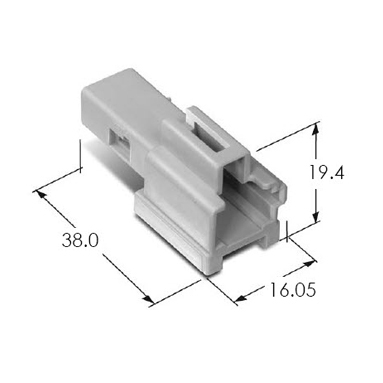

Series Product
/
