Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG641238-5
- Series :
- HYBRID SERIES
- Series
- HYBRID SERIES
- Dimensions
- 23.4*26.0*21.0
- Material Type
- PBT
- Sealed
- YES
- Color
- Black
- Number of Poles
- 4
- TPA
- YES

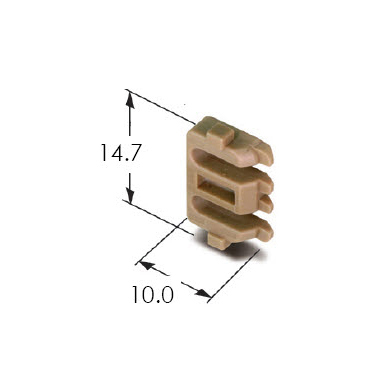

- Mating Rear Holder
- MG631237-7
- Mating Clip
- MG630418, MG630559, MG630922, MG631467, MG633061, MG633713-5, MG634647, MG634647

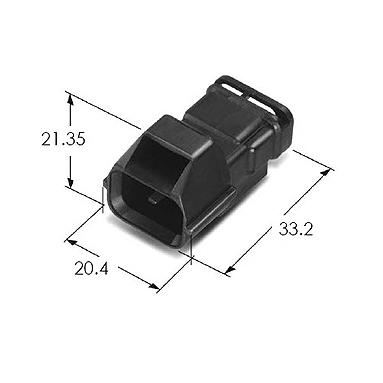

- Mating Connector
- MG611236-5
- Mating Terminal
- ST730622-3
- Wire Range
- CAVS 0.3~0.5,CAVS 0.85
- Insulation Resistance
- DC500V / 100MΩ (MIN.)
- Contact Resistance
- 10mΩ MAX. (Initial)
-
