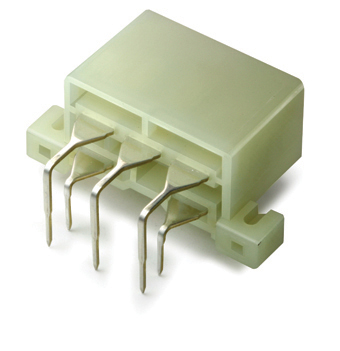

250 3M PCB CONN'T ASSY(H)

250 3M PCB CONN'T ASSY(H)

Part Number :: MG641659

Series :: 250 SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: 250 SERIES

Dimensions: 31.2*27.6*18.4

Physical Feature

Connector Type: DIP-HZT

Color: Natural

Number of Poles: 3

Mating Connector: MG611657

Pitch(mm): 9

Mating Tab Width(in): .250

Electrical Feature

Insulation Resistance: DC 500V 100MΩ MIN

Contact Resistance: 3mΩ MAX (Initial)

Terminal Transmits(A): 20
