DOOR 14M CONN'T ASSY(187II 2P+090II 12P)
DOOR 14M CONN'T ASSY(187II 2P+090II 12P)
Part Number :
MG641814
Series :
DOOR CONN'T SERIES
첨부파일
General Feature
Series
DOOR CONN'T SERIES
Dimensions
57.40*41.00*31.40
Material Type
PBT
Physical Feature
Sealed
NO
Color
Natural
TPA
YES
Number of Poles
14
Mating Terminal
ST740672-3, ST740673-3, ST740674-3, ST740631-3, ST740632-3, ST740633-3

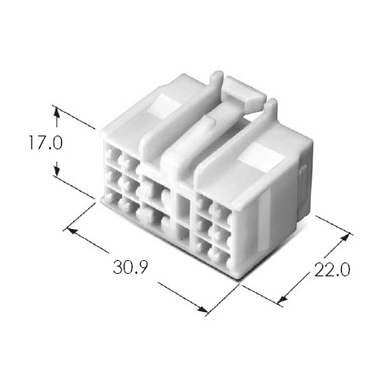

Mating Connector
MG651379
Electrical Feature
Wire Range
AVS(CAVS) 0.3-0.5,AVS(CAVS) 0.85-1.25,AVSS 2.0,AESSXF 2.5,AVSS(CAVS) 0.3-0.5,AVSS(CAVS) 0.85-1.25,AVS 2.0-3.0,AVSS 2.0,FLR2X-B4.0
Insulation Resistance
090II,187II:DC 500V 100MΩ Min
Contact Resistance
090II,187II:3mΩ Max(Initial)
