025060110250 82M Assy(LH)

025060110250 82M Assy(LH)

Part Number :: MG645921-2

Series :: HYBRID SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: HYBRID SERIES

Dimensions: 78.05*45.5*44.0

Material Type: PBT

Physical Feature

Sealed: NO

Color: Blue

Primary Locking Type: HSG Lance

TPA: YES

Number of Poles: 82

Mating Clip: MG631471, MG632019, MG631267, MG631929, MG631268, MG633815-5, MG634834, MG633862, MG633870-5, MG632970, MG663492-5, MG635682-5

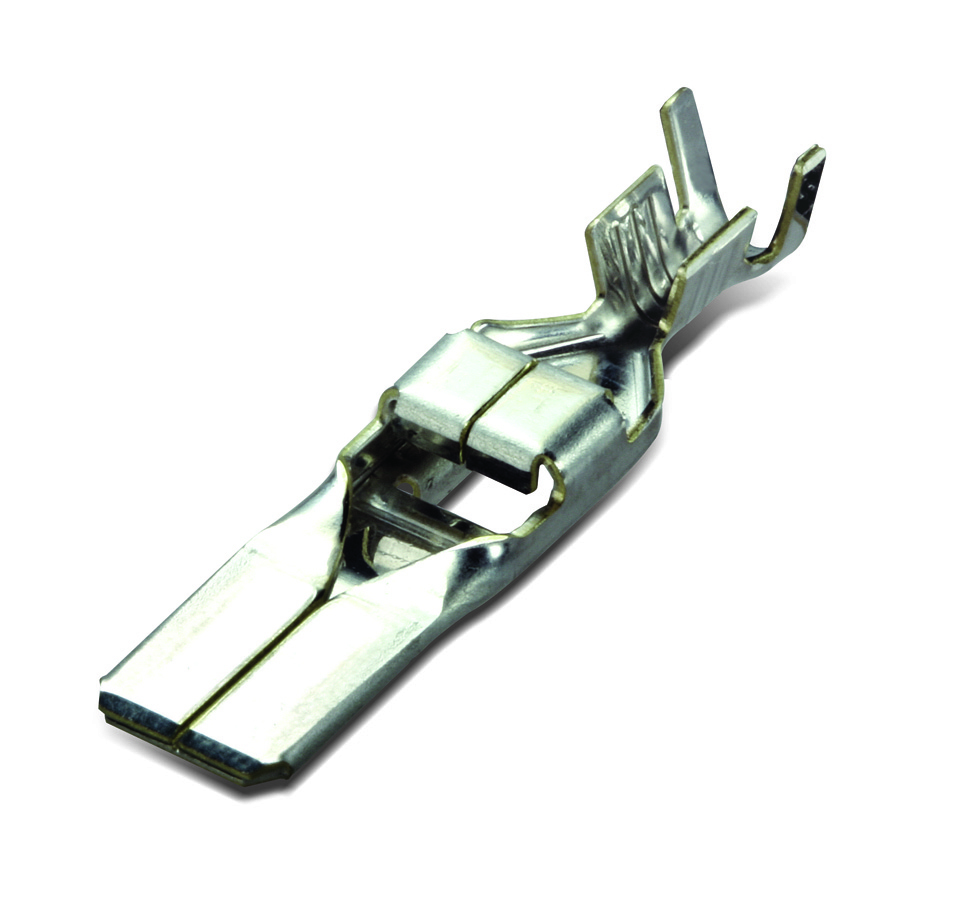

Mating Terminal: ST741345-3, ST741346-3, ST741331-3, ST741332-3, ST741333-3, ST741285-3, ST741286-3, ST741287-3, ST741206-3, ST741207-3, ST741208-3

Mating Connector: MG656790

Electrical Feature

Wire Range: CHFUS 0.22,AVSS 0.3-0.5,AVSS 0.22,AVSS 0.3-0.5,AEXF 0.5,CIVUS 0.35,0.5,FLRY-A,B 0.3-0.5,AVSS 0.85-1.25,AEXF 0.85,AVSS(0.3+0.3,0.3+0.5,0.5+0.5),FLRY-A,B 0.75-1.5,AVSS 0.3-0.5,AVSS 0.85-1.25,AVSS 2.0, AVSS 3.0,AVS 3.0,FLRY 2.5-4.0,AVS 1.0-2.0,AVS 0.5-0.85

Insulation Resistance: 025,060,110,250:DC 500V 100mΩ MIN

Contact Resistance: 025:10mΩ MAX(Initial),060:5mΩ MAX(Initial),110,250:3mΩ MAX(Initial)
