Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG645987
- Series :
- HYBRID SERIES
- Series
- HYBRID SERIES
- Dimensions
- 34.2*36.0*22.6
- Material Type
- PBT
- Sealed
- NO
- Color
- Natural
- Primary Locking Type
- HSG Lance
- TPA
- YES
- Number of Poles
- 21
- Mating Clip
- MG631267
- Mating Terminal
- ST741360-3, ST741361-3, kr30201-20, kr30301-20, kr00404-20

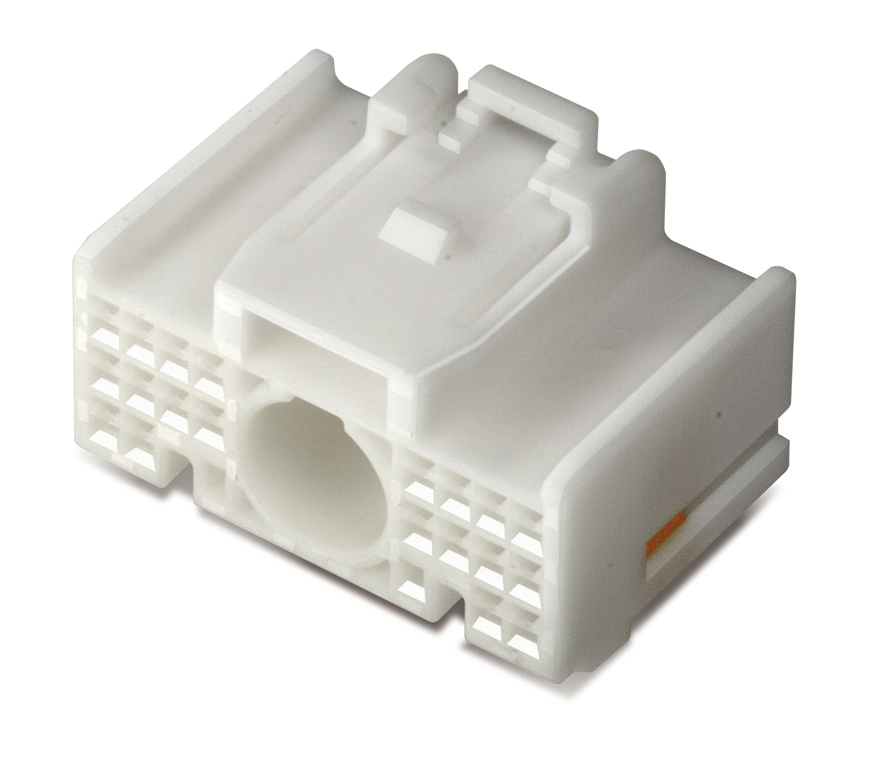

- Mating Connector
- MG656839
- Wire Range
- CHFUS0.13~0.22, AVSS0.3~0.5,CIVUS0.35,CIVUS0.5
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 10mΩ MAX (Initial)
-
