025060110250312375 71M ASSY (RH)

025060110250312375 71M ASSY (RH)

Part Number :: MG646275

Series :: HYBRID SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: HYBRID SERIES

Dimensions: 79.6*53.0*45.9

Material Type: PBT

Physical Feature

Sealed: No

Color: Natural

Primary Locking Type: HSG Lance

TPA: YES

Number of Poles: 71

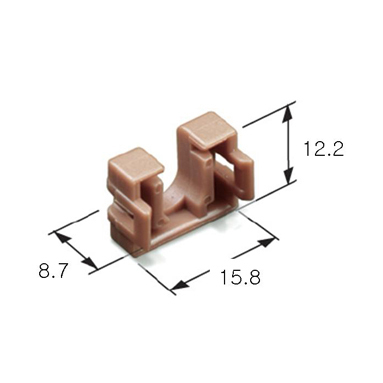

Mating Rear Holder: MG630661

Mating Clip: MG631267, MG631268, MG631471, MG631929, MG632019, MG632970, MG633815-5, MG633862, MG633870-5, MG634834, MG635682-5, MG635707, MG635710, MG635710, MG663492-5

Mating Terminal: ST740538-3, ST740539-3, ST740600-3, ST740601-3, ST741360-3, ST741360-g, ST741361-3, ST741361-g, ST741362-3, ST741363-3, ST741364-3, ST741367-3, ST741368-3, ST741369-3, ST741370-3, ST741371-3, ST741372-3

Mating Connector: MG657058

Pitch(mm): 025:2.2*3.4,060:3.2*3.5,110:5.6,250:9.2,312:12.55

Mating Tab Width(in): .025 / .060 / .110 / .250 / .312 / .375

Electrical Feature

Wire Range: AVSS 0.3~0.5,CHFUS 0.22,AVSS 0.3,0.5,0.85,1.25,CHFUS 0.22,AVSS 1.25,AESSXF1.25,FLRY-A1.5,AVSS2.0,AESSXF2.0,FLRY-A2.0,AESSXF2.5,FLRY-A2.5,AVSS0.85X0.85,AVSS0.5,FLRY-A0.5,AESSXF0.75,FLRY-A0.75,AVSS0.85,FLRY-A1.0,CHFUS0.22,AESSXF0.22,AVSS0.3,AESSXF0.3,CIVUS0.35,FLRY-A0.35,AVS3.0,FLRY-B4.0,AVSS1.25,AESSXF1.25,FLRY-B1.5,AVSS2.0,AESSXF2.0,FLRY-B2.0,AESSXF2.5,FLRY-B2.5,AVSS0.5,AESSXF0.5,FLRY-B0.5,AESSXF0.75,FLRY-B0.75,AVSS0.85,FLRY-B1.0,AVS2.0~3.0,AVS5.0,AV8.0,AVS5.0,AVS8.0,AVS3.0

Insulation Resistance: DC 500V 100MΩ

Contact Resistance: 025:10,060:5,110:3,250:3,312:3,375:2mΩ MAX(Initial)

Terminal Transmits(A): 025:5,060:6,110:10,250:25,312:42,375:60
