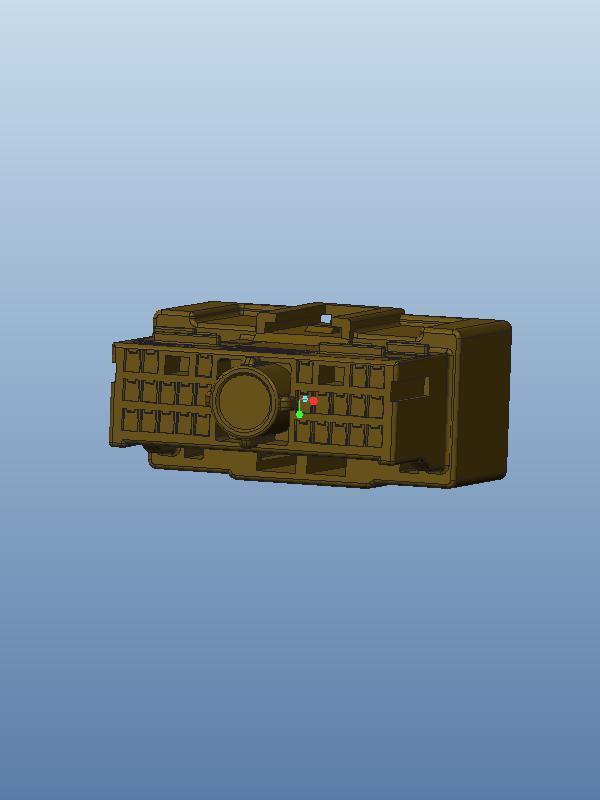

Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG646326-2
- Series :
- HYBRID SERIES
- Series
- HYBRID SERIES
- Dimensions
- 37.80*19.50*36.50
- Material Type
- PBT
- Sealed
- No
- Color
- Blue
- Primary Locking Type
- HSG Lance
- TPA
- YES
- Number of Poles
- 27
- Mating Clip

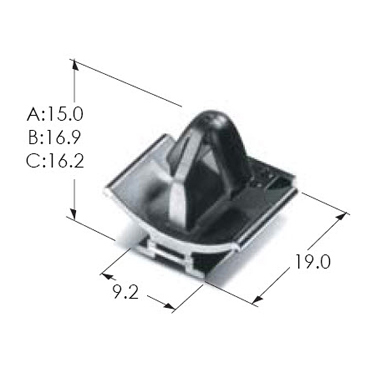

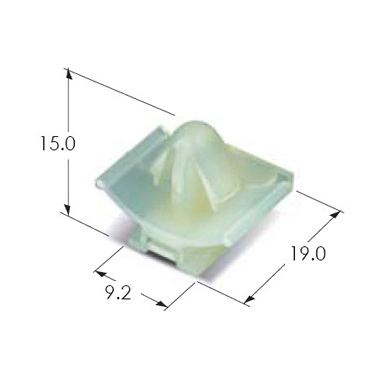

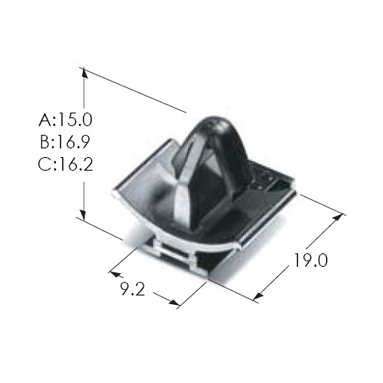

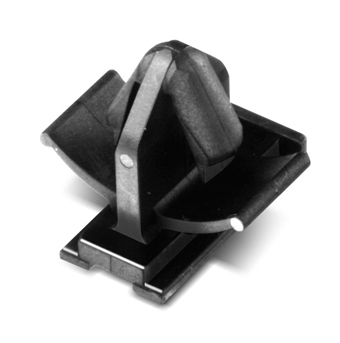

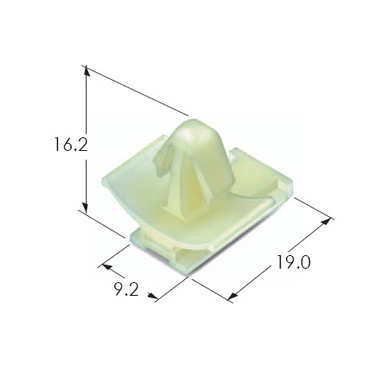

- MG630418, MG630559, MG630922, MG631467, MG633061, MG633713-5, MG634647
- Mating Terminal
- ST741360-3, ST741361-3
- Mating Connector

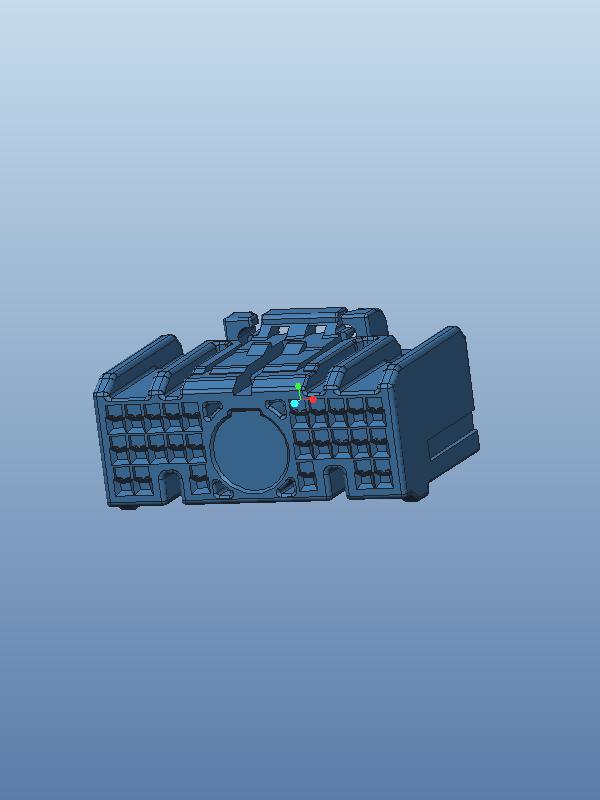

- MG657100-2
- Pitch(mm)
- 2.2
- Mating Tab Width(in)
- .025
- Wire Range
- 0.22~0.5
- Insulation Resistance
- DC 500V 100M
- Contact Resistance
- 10m
-
