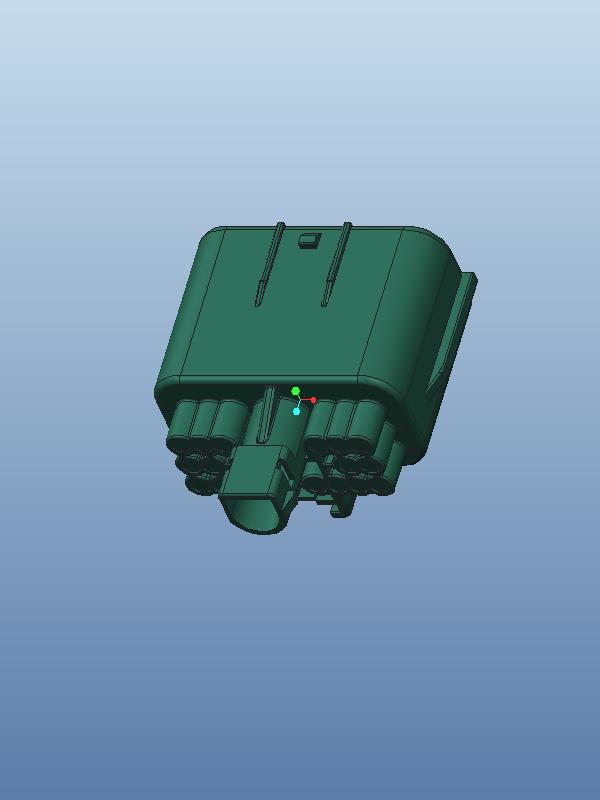

025 FAKRA WP 19M ASSY

025 FAKRA WP 19M ASSY

Part Number :: MG646380-5

Series :: HYBRID SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: HYBRID SERIES

Dimensions: 44.7*25.8*49.4

Material Type: PBT

Physical Feature

Sealed: YES

Color: Black

Primary Locking Type: HSG Lance

TPA: YES

Number of Poles: 19

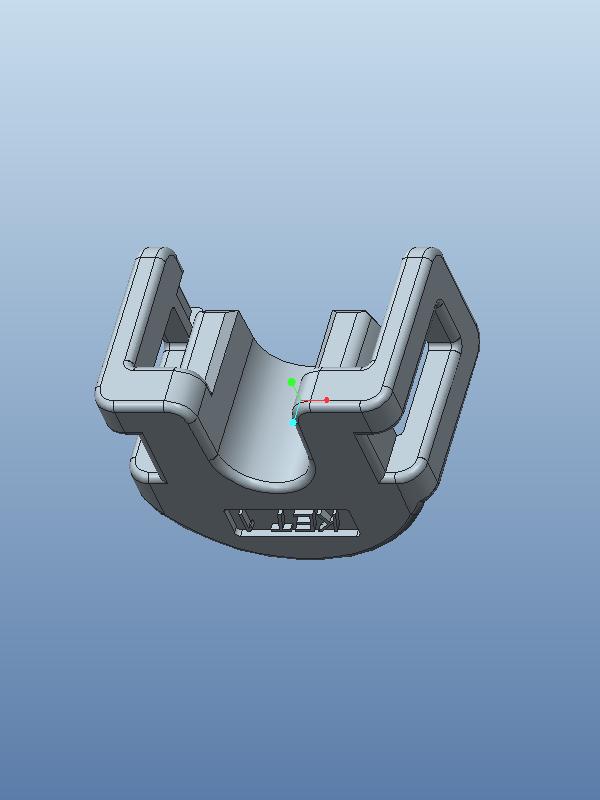

Mating Rear Holder: MG635740-40

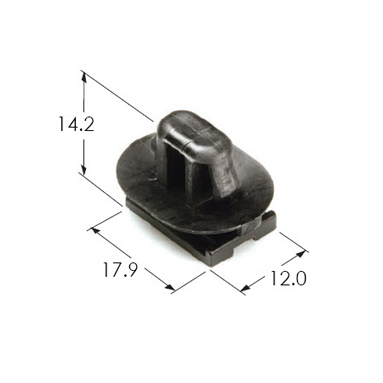

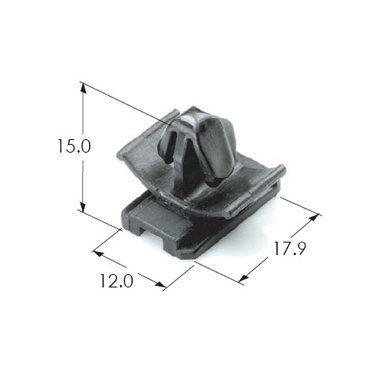

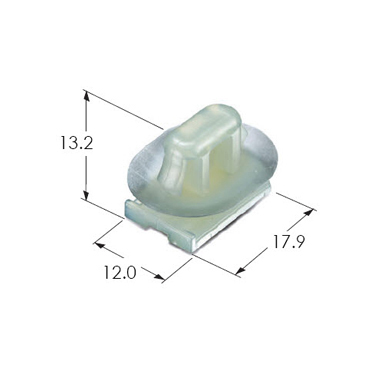

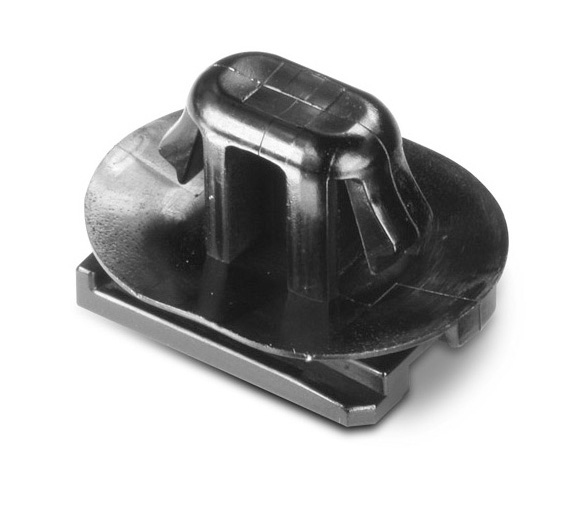

Mating Clip: MG633815-5, MG633862, MG633870-5, MG634834-5

Mating Terminal: ST741378-7, kr30301-20

Mating Connector: MG657145-5

Pitch(mm): c025 wp: 3.4*4.8 / fakra wp: -

Mating Tab Width(in): .025

Electrical Feature

Wire Range: C025 WP: AESSXF 0.3~0.5 / FAKRA WP: RG316S/A

Insulation Resistance: C025 WP: DC 500V 100MΩ / FAKRA WP: 1000MΩ이상

Contact Resistance: C025 WP: 10mΩ, FAKRA: 50Ω

Terminal Transmits(A): c025 wp: 5 / fkr wp: 1
