025060110 FAKRA DOOR 57M ASSY
025060110 FAKRA DOOR 57M ASSY
Part Number :
MG646394-5
Series :
DOOR CONN'T SERIES
첨부파일
General Feature
Series
DOOR CONN'T SERIES
Dimensions
78.22*40.22*50.80
Material Type
PBT
Physical Feature
Sealed
No
Color
Black
Primary Locking Type
HSG Lance
TPA
YES
Number of Poles
57
Mating Terminal

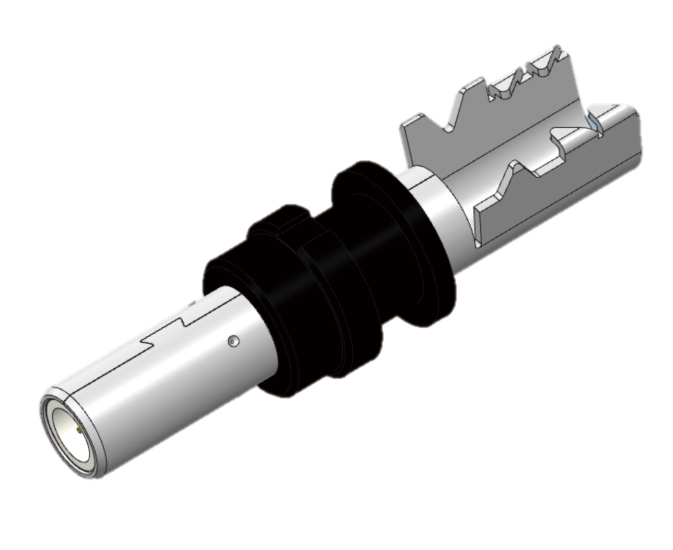

ST741360-7, ST741361-7, ST741362-7, ST741363-7, ST741364-7, ST741367-3, ST741368-3, ST741369-3, kr00408-20, kr30202-20, kr30301-20
Mating Connector
MG657163-5
Pitch(mm)
025 : 2.2*3.4, 060 : 3.2, 110 : 5.6
Mating Tab Width(in)
.025 / .060 / .110
Electrical Feature
Wire Range
AVSS 0.3~0.5,CHFUS 0.22,AVSS 0.3,0.5,0.85,1.25,CHFUS 0.22,AVSS 1.25,AESSXF1.25,FLRY-A1.5,AVSS2.0,AESSXF2.0,FLRY-A2.0,AESSXF2.5,FLRY-A2.5,AVSS0.85X0.85,AVSS0.5,FLRY-A0.5,AESSXF0.75,FLRY-A0.75,AVSS0.85,FLRY-A1.0,CHFUS0.22,AESSXF0.22,AVSS0.3,AESSXF0.3,CIVUS0.35,FLRY-A0.35
Insulation Resistance
DC 500V 100MΩ
Contact Resistance
025 : 10, 060 : 5, 110 : 3 mΩ MAX(Initial)
Terminal Transmits(A)
025 : 5, 060 : 6, 110:10
