Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG651580-2
- Series :
- 050 SERIES
- Series
- 050 SERIES
- Dimensions
- 24.40*16.80*19.00
- Material Type
- PBT
- Sealed
- NO
- Color
- Blue
- Number of Poles
- 10
- TPA
- YES

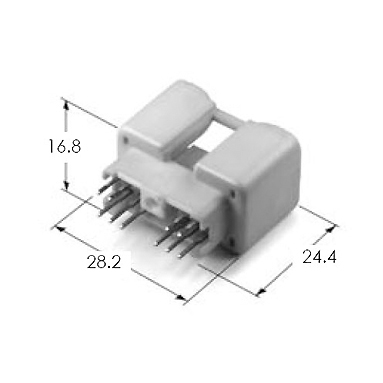

- Mating Connector
- MG641732, MG641577
- Mating Terminal
- ST730751
- Pitch(mm)
- 5.7
- Mating Tab Width(in)
- .050
- Wire Range
- 050:AVS(CAVS, CAVUS) 0.3~0.5
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 5mΩ MAX (Initial)
- Terminal Transmits(A)
- 5
-
