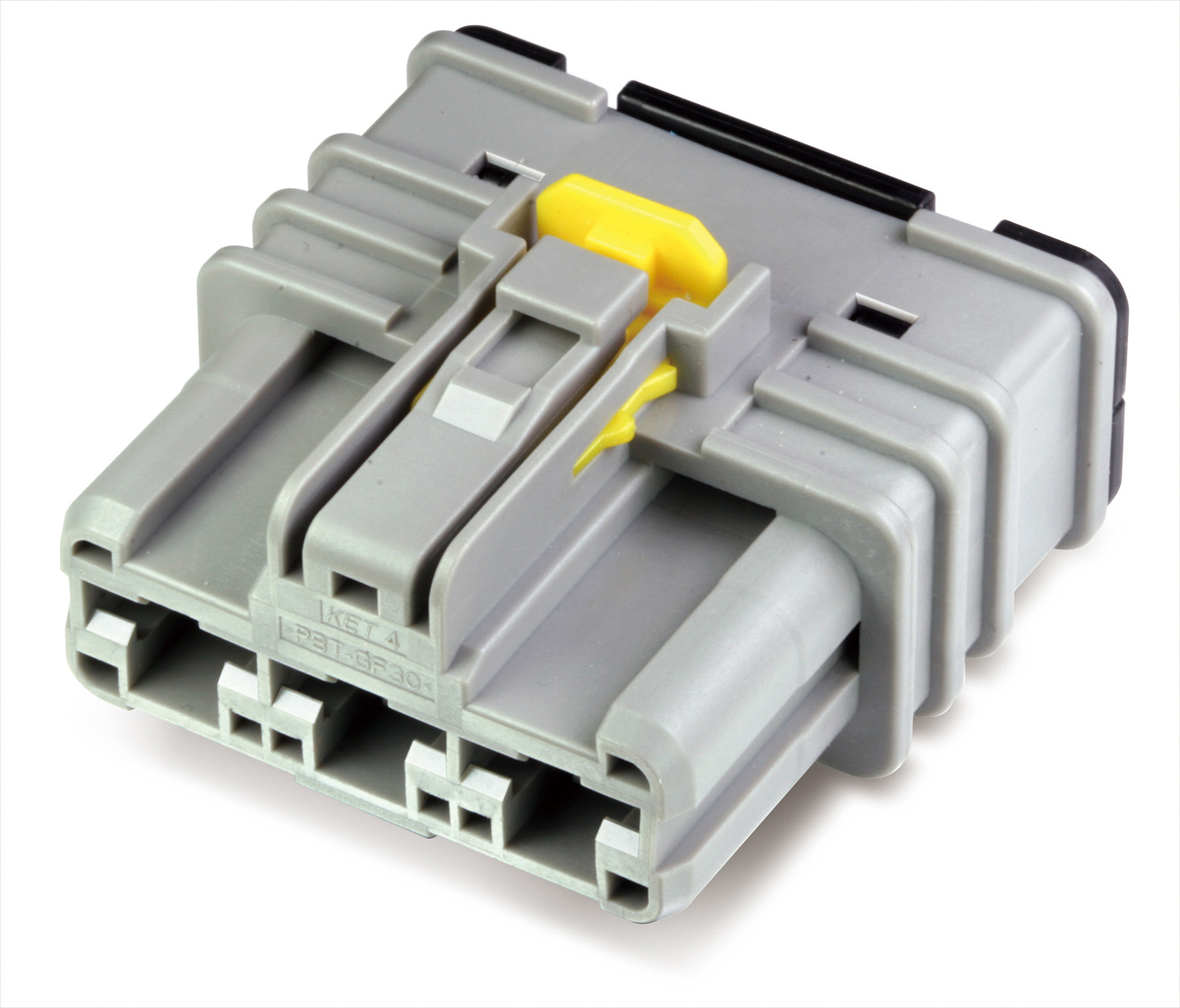

Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG656860-40
- Series :
- 375 SERIES
- Series
- 375 SERIES
- Dimensions
- 47.2*27.45*45
- Material Type
- PBT+G30
- Sealed
- NO
- Color
- Dark Gray
- Number of Poles
- 3
- TPA
- YES
- Mating Terminal
- ST730722-3
- Pitch(mm)
- 12.5
- Mating Tab Width(in)
- .375
- Wire Range
- 8SQ NON SHIELD WIRE
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 2mΩ MAX (Initial)
- Terminal Transmits(A)
- 60
-
