Front Door 56F Assy
Front Door 56F Assy
Part Number :
MG656866-5
Series :
DOOR CONN'T SERIES
첨부파일
General Feature
Series
DOOR CONN'T SERIES
Dimensions
91.3*35.8*42.5
Material Type
PBT
Physical Feature
Sealed
NO
Color
Black
Number of Poles
56
TPA
YES
Mating Rear Holder
MG676662-41

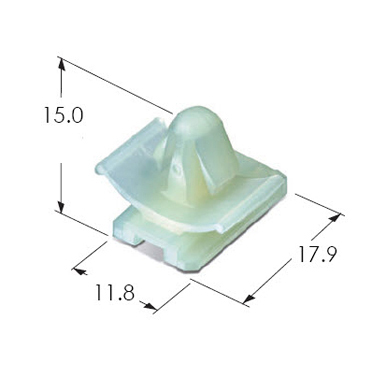

Mating Clip
MG631471
Mating Connector
MG646018-5
Mating Terminal
ST741360-3, ST741361-3, ST741362-3, ST741363-3, ST741364-3, ST741367-3, ST741368-3, ST741369-3
Electrical Feature
Wire Range
025:CHFUS 0.22, AVSS 0.3~0.5, 060:AVSS 0.85, AVSS 1.25,AVSS 0.3+0.3, AVSS 0.3, AVSS 0.5, CHFUS 0.22, 110:AVSS1.25, AESSXF1.25, FLRYA1.5, AVSS2.0, AESSXF2.0,FLRY-A2.0, AESSXF2.5, FLRY-A2.5, AVSS0.85×0.85, AVSS0.5, FLRY-A0.5, AESSXF0.75, FLRY-A0.75, AVSS0.85, FLRY-A1.0, CHFUS0.22, AESSXF0.22,AVSS0.3, AESSXF0.3, CIVUS0.35, FLRY-A0.35
Insulation Resistance
DC500V / 100MΩ (MIN)
Contact Resistance
025:10mΩ MAX. (Initial), 060:5mΩ MAX. (Initial), 110:3mΩ MAX. (Initial)
