025060110 35F ASSY_RSB(FAKRA)

025060110 35F ASSY_RSB(FAKRA)

Part Number :: MG657101-2

Series :: HYBRID SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: HYBRID SERIES

Dimensions: 43.7*27.3*29.35

Material Type: PBT

Physical Feature

Sealed: No

Color: Blue

Number of Poles: 35

Primary Locking Type: HSG Lance

TPA: YES

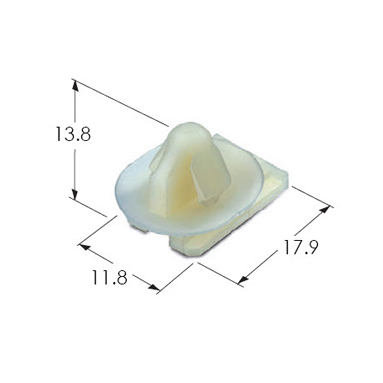

Mating Clip: MG631267, MG631268, MG631471, MG631929, MG632019, MG632970, MG633815-5, MG633862, MG633870-5, MG634834, MG663492-5

Mating Connector: MG646333-2

Mating Terminal: ST731374-3, ST731375-3, ST731334-3, ST731335-3, ST731336-3, ST731279-3, ST731280-3, ST731281-3

Pitch(mm): 025:2.2*3.2, 060:3.5*5.0

Mating Tab Width(in): .025 / .060 / .110

Electrical Feature

Wire Range: CHFUS 0.22,AVSS 0.3-,AVSS 0.5,AVSS 0.85-,AVSS 1.25,AVSS 2.0,AVSS 3.0,AVS 3.0,FLRY 2.5-,FLRY 4.0,AVS 1.0-,AVS 2.0,AVS 0.5-,AVS 0.85

Insulation Resistance: DC 500V 100MΩ Min

Contact Resistance: 025: 10mΩ / 060: 5mΩ / 110: 3mΩ

Terminal Transmits(A): 025:5,060:10,110:15
