025060110 FAKRA DOOR 57F ASSY
025060110 FAKRA DOOR 57F ASSY
Part Number :
MG657163-5
Series :
DOOR CONN'T SERIES
첨부파일
General Feature
Series
DOOR CONN'T SERIES
Dimensions
78.7*36.2*42.4
Material Type
PBT
Physical Feature
Sealed
No
Color
Black
Number of Poles
57
Primary Locking Type
HSG Lance
TPA
YES
Mating Connector
MG646394-5
Mating Terminal

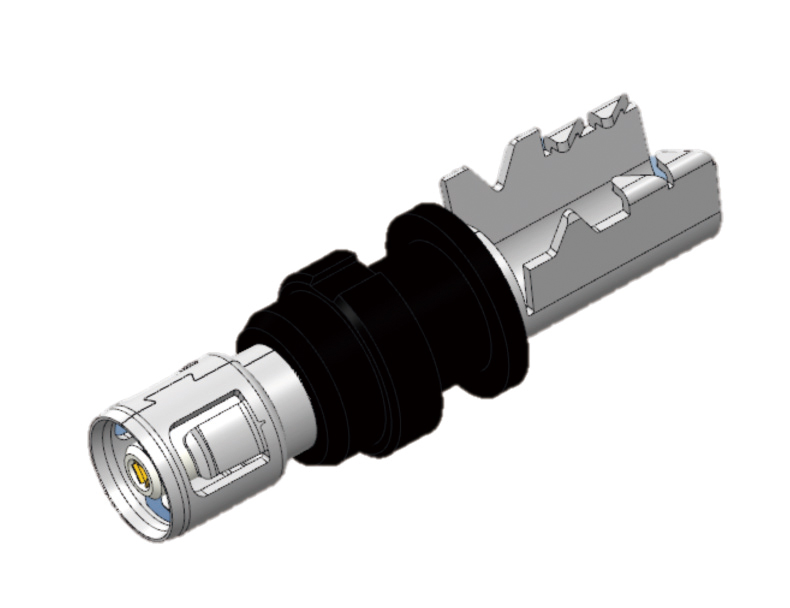

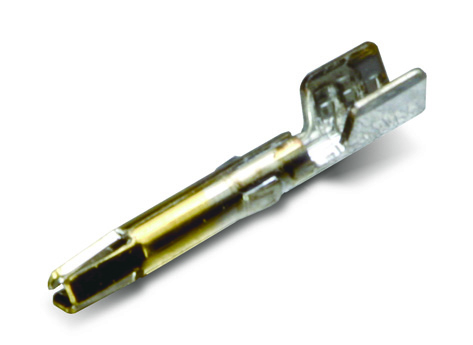

ST731409-7, ST731410-7, ST731411-7, ST731412-7, ST731413-7, ST731424-3, ST731425-3, ST731426-3, kr00408-20, kr20203-20, kr20301-20
Pitch(mm)
025 : 2.2*3.4, 060 : 3.2, 110 : 5.6
Mating Tab Width(in)
.025 / .060 / .110
Electrical Feature
Insulation Range
na
Wire Range
AVSS 0.3~0.5,CHFUS 0.22,AVSS 0.3,0.5,0.85,1.25,CHFUS 0.22,AVSS 1.25,AESSXF1.25,FLRY-A1.5,AVSS2.0,AESSXF2.0,FLRY-A2.0,AESSXF2.5,FLRY-A2.5,AVSS0.85X0.85,AVSS0.5,FLRY-A0.5,AESSXF0.75,FLRY-A0.75,AVSS0.85,FLRY-A1.0,CHFUS0.22,AESSXF0.22,AVSS0.3,AESSXF0.3,CIVUS0.35,FLRY-A0.35
Insulation Resistance
DC 500V 100MΩ
Contact Resistance
025 : 10, 060 : 5, 110 : 3 mΩ MAX(Initial)
Terminal Transmits(A)
5/6/10
